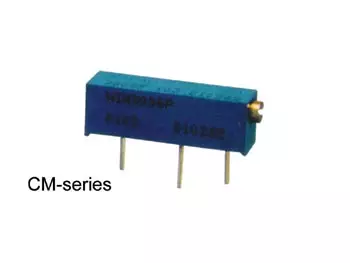

TRIMMERIPOTENTIOMETRI MONIKIERROS 1K (3006-P 102)

Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Ominaisuudet:
MEC CITEC 443PW • horizontal mounting • horizontal adjustment • pin layout: triangle • range: 10E to 2M (E3 series)
Tekniset tiedot:
power rating: 0.75W at 70°C • tolerance: ±10% • working voltage: 400Vdc • rotation: •• electrical: 15 turns nom. •• mechanical: 18 turns nom.
