PIR motion detector switch - recessed and surface installation - 12V/24V

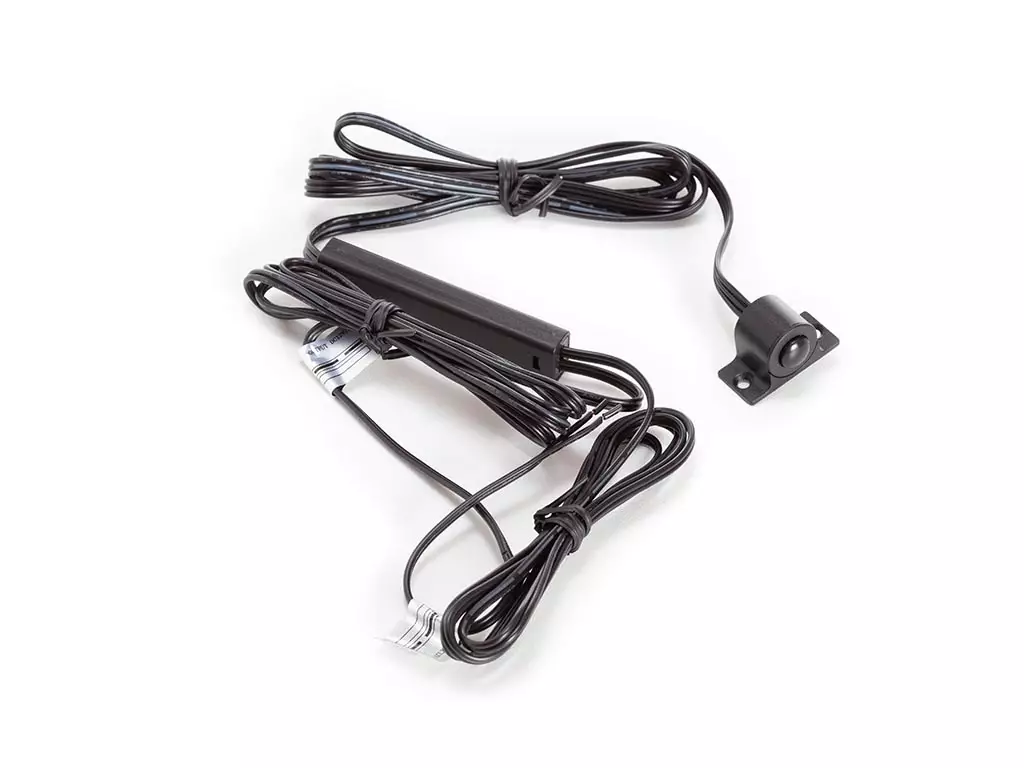

Discover the ultimate in convenience and energy efficiency with our recessed PIR motion sensor for controlling LED strips. Thanks to its compact design, this sensor can be discreetly mounted in ceilings, walls, cabinets or dressers. You have the choice of building this sensor in by simply drilling a 13mm hole or installing it as surface-mount with the included bracket. Take advantage of automatic lighting and save energy as the sensor detects motion and turns on your LED strips when needed.

Tekniset tiedot

Electrical data

Maximum current rating: 3 A

IEC protection class: Class III

Power consumption range: 36-72 W

Quiescent current: < 1 mA

Technical data

Mounting type: Recessed, Surface mounted

Sensor type: PIR

Set-up options

Detection angle: 110 °

Detection range: 1-3 m

Environmental data

IP rating: IP20

Operating temperature range: -20-45 °C

Operational properties

Diameter mounting hole (mm): 13 mm

Time delay: ± 5 s

Power supply

Input voltage rating VDC range: 12-24 V

Product basic info

Colour unit: Black

Depth unit: 9 mm

Material: ABS

Height unit: 13 mm

Width unit: 65 mm

Weight unit: 44 g
