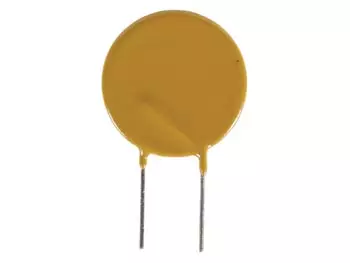

PALAUTUVA YLIVIRTASUOJA 0,9-1,8A/60VDC

The PTC resistor resets automatically and protects your circuit permanently.
Ominaisuudet:
low hold current • solid state • radial leads
Tekniset tiedot:
hold current Ih (A): 0.90 • trip current It (A): 1.80 • max. time to trip (at 5 x Ih): 7.2 • max. current Imax (A): 40 • rated voltage Vmax (Vdc): 60 • typ. power Pd (W): 0.99 • resistance tolerance: •• Rmin (ohm): 0.22 •• Rmax. (1 hour after tripping) (ohm): 0.47 • dimensions: •• A (max): 11.7 •• B (max): 15.8 •• C (typ): 5.1 •• D (min): 7.6 •• E (max): 3.1 •• F (typ): 1.1 • operating current: 100mA ~ 3.75mA • maximum current: 40A • maximum voltage: 60V • temperature range: -40°C to +85°C • materials: •• leads: tin-plated copper •• insulation: flame-retardant epoxy, meets requirement UL-94V-O
