MUUNTAJA PIIRIKORTTIMALLI 5VA 1x24V/1x0,208A (10246/EI42)

Ominaisuudet:

Tekniset tiedot:

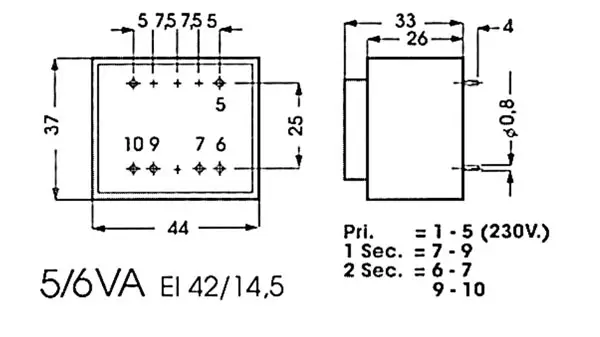

voltage: 1 x 24V • current: 1 x 0.208A • isolation resistance: >5Mohm / 500Vdc • electric strength: >5kV min. • designed for an ambient temperature of max. 40°C • thermal class E, materials to max. 120° • short-circuit protection up to 3VA • possibility of thermal fuse protection • max. temperature for class E: 95°C • primary tension: 230V ± 10%, 50/60Hz • secondary voltage tolerance: +7% - 3% at 230V and max. load • perfect solderability for wave bath • CE labelled • creepage distances and clearances according to IEC742 • picture: •• 1*: bobbin with two chambers •• 2*: input winding •• 3*: encapsulation in epoxy resin •• 4*: output winding •• 5*: connection pins •• 6*: polyamide cover •• 7*: magnetic core •• 8*: safety transformer •• 9*: inherently short-circuit proof •• 10*: primary voltage •• 11*: nominal power / temperature •• 12*: manufacturer's reference •• 13*: ordercode •• 14*: meets : •• 15*: nominal secondary voltages
