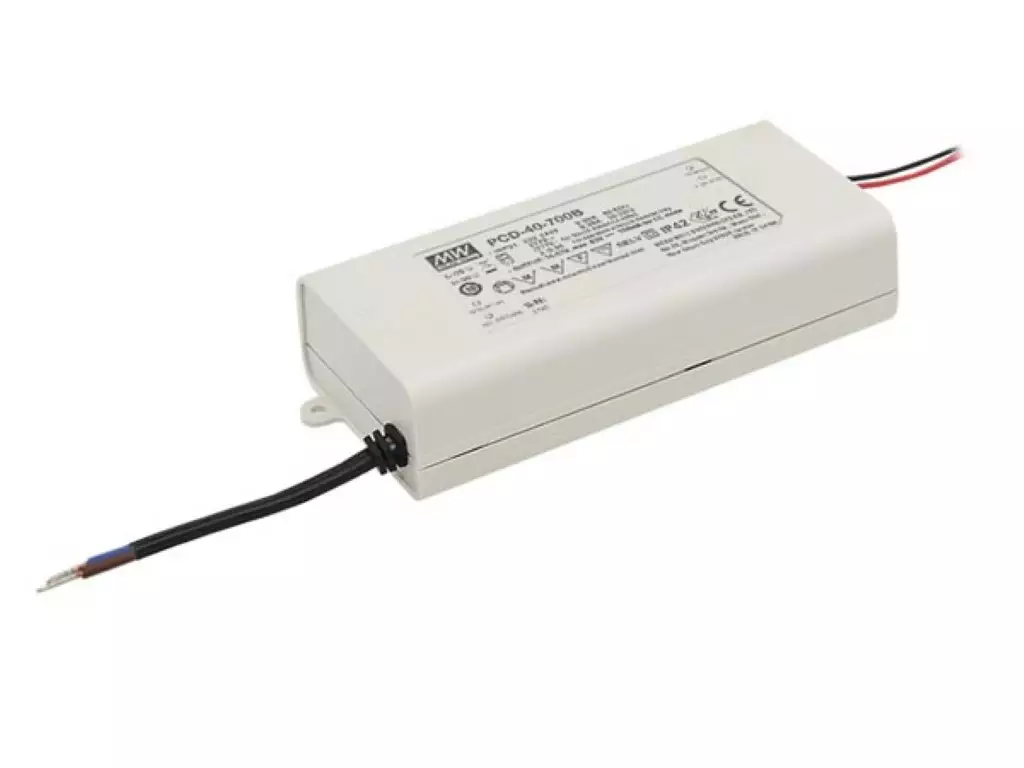

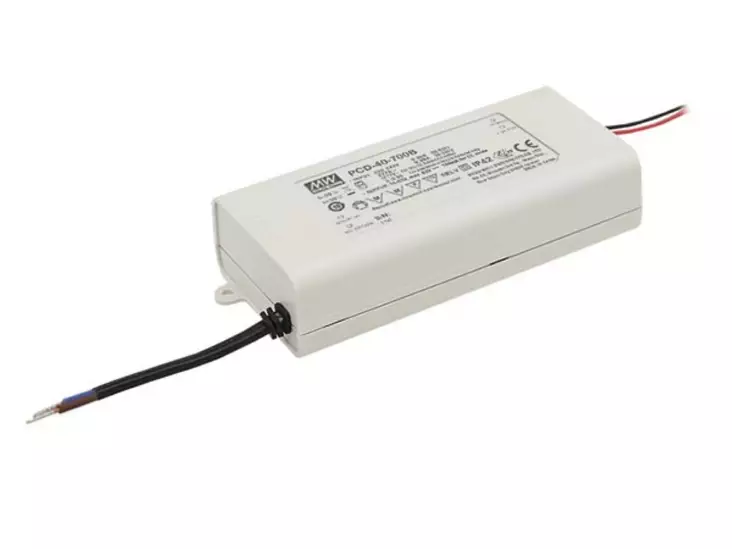

LED TEHOLÄHDE - HIMMENNETTÄVÄ - YKSI LÄHTÖ - 40 W - 63 V
Ominaisuudet AC phase-cut dimming work with leading edge and trailing edge TRIAC dimmers built-in active PFC function constant current design protections: short circuit / over temperature cooling by... Lue lisää
Tarjoustuote!
85,15 €(Sis.alv)
67,85 €(alv 0%)
tai 10 kpl hintaan 67,69 € / kpl(Sis.alv)
- Tuotekoodi: PCD-40-700B
- EAN: 4711287458281
- Takuu: 1 vuosi
- Paino: 0.24 kg
- Toimittajan saatavuus: 13 KPL
Tilaa kerralla useampi ja säästä!
| Määrä | Hinta á |
|---|---|
1kpl | 85,15 €/ kpl |
5kpl | 71,45 €/ kpl-13,70 €/ kpl |
10kpl | 67,69 €/ kpl-17,46 €/ kpl |
kpl
Ominaisuudet
AC phase-cut dimming
work with leading edge and trailing edge TRIAC dimmers
built-in active PFC function
constant current design
protections: short circuit / over temperature
cooling by free air convection
fully isolated plastic case
IP42 design
class II power unit, no FG
class 2 power unit
suitable for LED related fixture or appliance
100% full load burn-in test
high reliability, low cost
Tekniset tiedot
output:
rated current: 700 mA
operating voltage range: 34 - 57 V
current accuracy: ± 5.0 %
rated power: 39.9 W
ripple & noise (max): 3.1 Vp-p
no load output voltage (max): 63 V
setup time: 500ms / 230 VAC
input:
voltage range: 180 - 295 VAC
frequency range: 47 - 63 Hz
power factor (typ): PF > 0.9 / 230 VAC, PF > 0.9 / 277 VAC at full load
efficiency (typ): 86%
AC current: 0.35 A / 230 VAC, 0.3 A / 277 VAC
inrush current (max): cold start 11 A (twidth=50µs measured at 50% Ipeak) at 230 VAC
max. no. of PSU's on 16 A circuit breaker: 47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230 VAC
leakage current: <0.5 mA / 240 VAC
protection:
short circuit: hiccup mode, recovers automatically after fault condition is removed
over temperature: shut down o/p voltage, auto-recovery
environment:
working temperature: -30 - +50 °C
working humidity: 20 - 95% RH non-condensing
storage temperature, humidity: -40 - +80 °C, 10 - 95% RH
temperature coefficient: ± 0.03% / °C (0 - 50 °C)
vibration: 10 - 500 Hz, 2G 12min./ 1cycle, period for 72min. each along X, Y, Z axes
safety & EMC:
safety standards: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42 approved
withstand voltage: I/P-O/P:3.75K VAC
isolation resistance: I/P-O/P:100M Ohms / 500 VDC / 25 °C / 70% RH
EMC emission: Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3
EMC immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(Surge 2KV), criteria B
others:
MTBF: 362.331K hrs min. MIL-HDBK-217F (25°C)
dimension: 128 x 60 x 31.5 mm (L x W x H)
