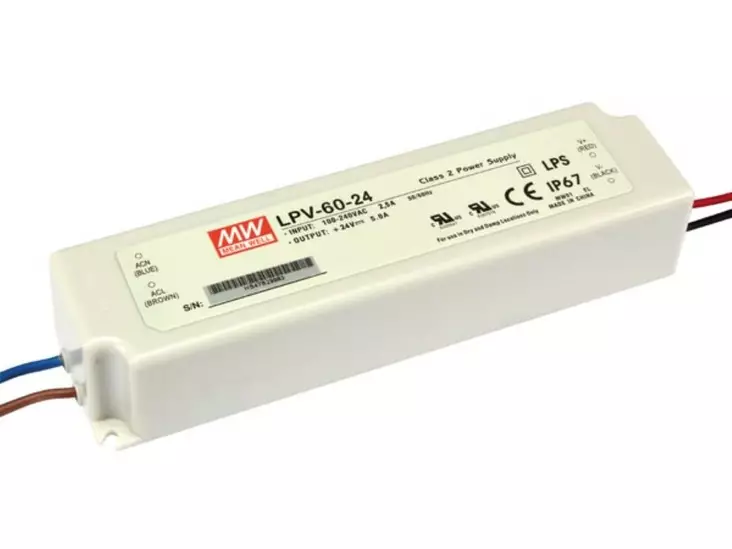

LED HAKKURITEHOLÄHDE VAKIOJÄNNITE - 60W - 24VDC

Ominaisuudet

• constant voltage design
• universal AC input / full range
• withstands 300 VAC surge input for 5 seconds
• protection against: short circuit / overload / overvoltage
• cooling: free air convection
• fully encapsulated, IP67
• fully isolated plastic case
• class II power unit, no FG
• pass LPS
• suitable for LED lighting and moving sign applications
• low cost / high reliability
• 100% full load burn-in test
• 2 years warranty
• short circuit protection
• overload protection
• over voltage protection (255V)
• thermal protection (80°)
• waterproof protection IP67

Tekniset tiedot

• output:
  • DC voltage: 24 V
  • rated current: 2.5 A
  • current range: 0-2.5 A
  • rated power: 60 W
  • ripple & noise (max): 150 mVp-p
  • voltage tolerance: ± 5.0 %
  • line regulation: ± 1.0 %
  • load regulation: ± 2.0 %
  • setup, rise time: 500 ms, 20 ms / 230 VAC 500 ms, 20 ms / 115 VAC at full load
  • hold up time (typ.): 50 ms / 230 VAC 16 ms / 115 VAC at full load
• input:
  • voltage range: 90-264 VAC 127-370 VDC
  • frequency range: 47-63 Hz
  • efficiency (typ.): 86 %
  • AC current (typ.): 1.2 A / 115 VAC 1A / 230 VAC
  • inrush current (max.): cold start 60A (twidth=525 µs measured at 50 % lpeak) at 230 VAC
  • leakage current: 0.25 mA / 240 VAC
• protection:
  • overload:
    • 110-150 % rated output power
    • protection type: hiccup mode, recovers automatically after fault condition is removed
  • overvoltage:
    • 27.6-32.4 V
    • protection type: shut down output voltage, re-power on to recover
• environment:
  • operating temperature: -30 to 70 °C
  • operating humidity: 20-90 % RH non-condensing
  • storage: -40 to +80 °C, 10-95 % RH
  • temperature coefficient: ± 0.03 % / °C (0-50 °C)
  • vibration: 10-500 Hz, 2G 10 min / 1 cycle, period for 60 min each along X, Y, Z axes
• safety & EMC:
  • safety standards: UL879 (except for LPV-60-5), UL1310 (except for LPV-60-5), CSA C22.2 No. 207-M89 (except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91 (except for LPV-60-5, LPV-60-48), IP67 approved; design refer to TUV EN60950-1
  • withstand voltage: input to output: 3 kVAC
  • isolation resistance: input to output: 100 Mohm / 500 VDC / 25 °C / 70 % RH
  • EMC emission: compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3
  • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
• other:
  • MTBF: min. 732,000 h, MIL-HDBK-217F (25 °C)
  • dimensions (L x W x H): 162.5 x 42.5 x 32 mm
  • packing: 0.4 kg; 32 pcs / 13.8 kg/0.56 ft³
• housing: aluminium
• connection: leads
• protection class: IP67
• storage temperature: -40°C ~ 80°C
• operating temperature: -25°C ~ 50°C
