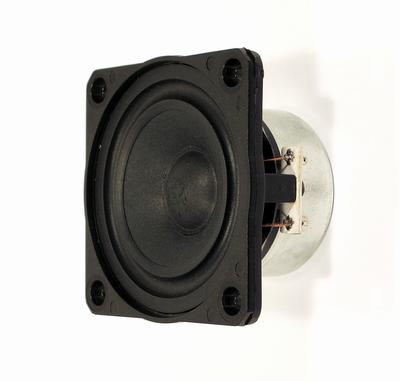

VISATON SC 8 N 8 OHM

Magnetically shielded 8 cm (3.3") fullrange driver with cellulose cone and inverted rubber surround. Very balanced frequency response. In conjunction with the shielded tweeter SC 5 8 OHM especially suitable for small magnetically shielded 2-way combinations such as Multi Media systems.

Typical applications :
- Surround centre speakers
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals

Attributes :
- Plastic: ABS V0 (UL 94: V-0)
- Moisturised cone
- Magnetically shielded

Technical Data:
Rated power	30 W
Maximum power	50 W
Nominal impedance Z	8 Ohm
Frequency response	70–20000 Hz
Mean sound pressure level	81 dB (1 W/1 m)
Opening angle (-6 dB)	150°/4000 Hz
Excursion limit	+/−3 mm
Resonance frequency fs	110 Hz
Magnetic induction	0,9 T
Magnetic flux	170 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	4 mm
Cutout diameter	73 mm
Net weight	0,28 kg
D.C. resistance Rdc	7,0 Ohm
Mechanical Q factor Qms	3,68
Electrical Q factor Qes	1,31
Total Q factor Qts	0,97
Equivalent volume Vas	1,5 l
Effective piston area Sd	26 cm²
Dynamically moved mass Mms	1,9 g
Force factor Bxl	2,4 Tm
Inductance of the voice coil L	0,3 mH
Temperature range	−25 ... 70 °C
