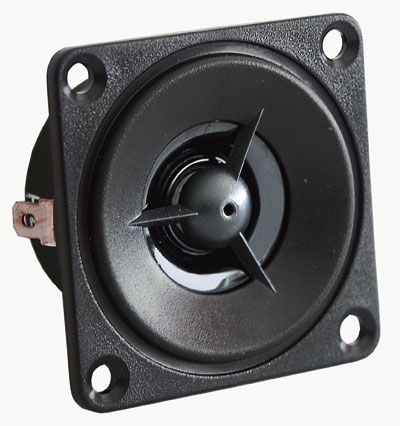

VISATON SC 5 8 OHM

Magnetically shielded 13 mm (0.5") polycarbonate dome driver for the high-frequency range above 4000 Hz. Balanced frequency response, excellent omnidirectional sound distribution and high efficiency. Suitable for small sized shielded 2-way combinations for surround center speakers and multi media systems in conjunction with the shielded fullrange driver F 8 SC 8 Ohm.

Technical Data:
Nominal power handling with high pass	60 W (12 dB/Okt.; 6000 Hz)
Peak power handling with high pass	100 W (12 dB/Okt.; 6000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1500–22000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	107°/8000 Hz
Resonance frequency fs	2000 Hz
Magnetic induction	0,7 T
Magnetic flux	33 µWb
Height of front pole-plate	2 mm
Voice coil diameter	13 mm
Height of winding	2 mm
Cutout diameter	48 mm
Net weight	0,098 kg
Connections	5,2 x 0,5 mm (+) 2,8 x 0,5 mm (−)
