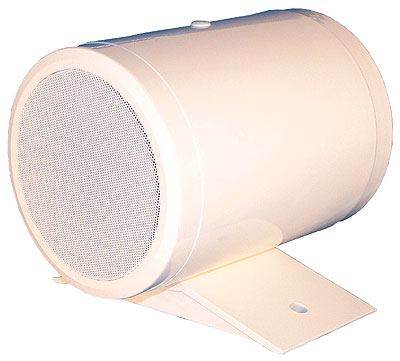

VISATON PL 13 D 100 V

Twin radiating loudspeaker with cylindrical plastic housing (ABS) and sturdy mounting bracket (aluminium). Fitted with two full range loudspeakers and 100 V transformer. Cables can be concealed in the bracket if required. High level of voice quality. Particularly suitable for corridors and other elongated rooms.

Typical applications:
- Public address systems in public buildings, particularly suitable for corridors and other elongated rooms.

Attributes:
- Plastic: ABS (UL 94: HB)
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment/ low temperature)
- UV-resistant
- 100 V transformer
- weather-resistant

Technical Data:
Transformer matching	15; 7,5; 3,75 W
Sound pressure level	99 dB (1 W/1 m) @ 1739 Hz
Frequency response	150–6000 Hz
Mean sound pressure level	92 dB (1 W/1 m)
Max. sound pressure level	103 dB (15 W/1 m)
Opening angle (-6 dB)	54°/4000 Hz
Net weight	2,3 kg
Length of cable	1 m
Protective system	IP 65
Temperature range	−40 ... 80 °C
