VISATON PAW 46 - 8 Ohm
46 CM (18'') BASSO PA KÄYTTÖÖN
421,28 €(Sis.alv)
335,68 €(alv 0%)
- Tuotekoodi: PAW46
- Takuu: 3 vuotta
kpl

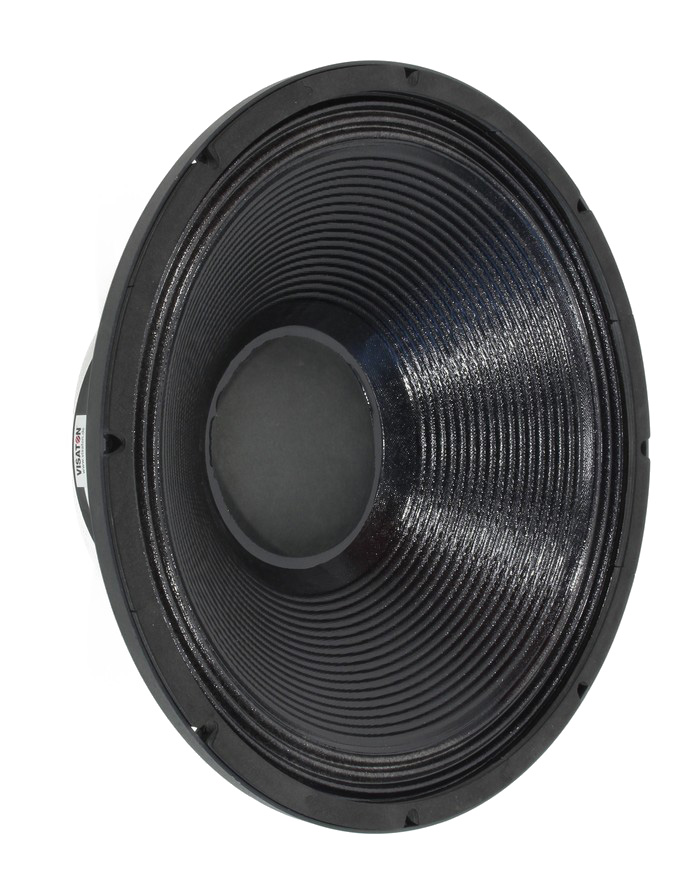

46 cm (18") woofer for PA applications.
Attributes
- Die cast basket
- Reinforced paper membrane
- 100 mm voice coil for high power handling
- Til voice coil former
- Additional vented air gap (6 holes)
- 55 mm t-yoke venting
- M shape surround for high excursion
- Nomex spider
- EVA gasket
- Ferrite magnet
Recommended cabinets
| Volume/Principle | BR-Channel | fb | fc/QTC |
| 120 l/closed | - | - | 56 Hz/0,71 |
| 150 l/bass reflex | 6 x BR 25.50 | 37 Hz | - |
| 273 l/bass reflex | 400 cm² x 27 cm | 30 Hz | - |
Technical Data
| Cm | 0,16 mm/N |
|---|---|
| Rated power | 700 W |
| Maximum power | 1000 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–3200 Hz |
|---|---|
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 93 dB (2,83 V/1 m) |
| Maximum linear displacement | +/−4,9 mm |
| Excursion limit | +/−10 mm |
| Resonance frequency fs | 29 Hz |
| Height of front pole-plate | 12 mm |
| Voice coil diameter | 100 mm |
| Height of winding | 21,8 mm |
| Cutout diameter | 422 mm |
| Net weight | 11,5 kg |
| D.C. resistance Rdc | 6,1 Ohm |
| Mechanical Q factor Qms | 8,97 |
| Electrical Q factor Qes | 0,38 |
| Total Q factor Qts | 0,36 |
| Equivalent volume Vas | 325 l |
| Effective piston area Sd | 1210 cm² |
| Dynamically moved mass Mms | 186 g |
| Force factor Bxl | 23,6 Tm |
| Inductance of the voice coil L | 1,5 mH |
