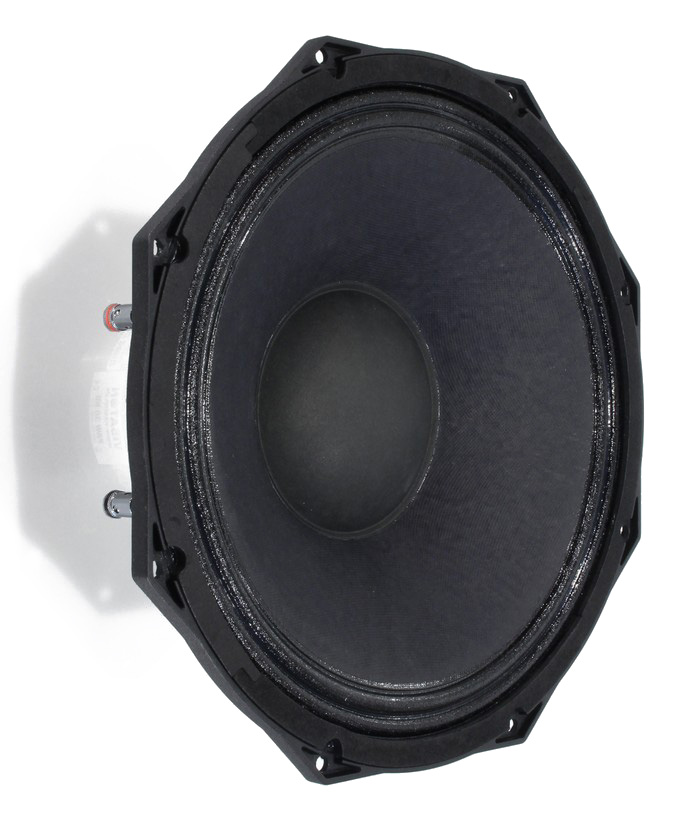

VISATON PAW 30 ND - 8 Ohm
30 CM (12'') BASSO/KESKIÄÄNIELEMENTTI PA KÄYTTÖÖN
374,13 €(Sis.alv)
298,11 €(alv 0%)
- Tuotekoodi: PAW30ND-8OHM
- Takuu: 3 vuotta
kpl
30 cm (12") bass midrange for PA applications.
Attributes
- Octagonal die cast basket
- Paper membrane
- 75 mm voice coil for high power handling
- Til voice coil former
- Vented spider
- Additional vented air gap (8 holes)
- 10 mm t-yoke venting
- M shape surround for high excursion
- Connex spider
- EVA gasket
- Neodymium magnet
- Impedance control ring (aluminum)
Recommended cabinets
| Volume/Principle | BR-Channel | fb | fc/QTC |
| 26,5 l/closed | - | - | 89 Hz/0,71 |
| 60 l/bass reflex | 3 x BR 25.50 | 48 Hz | - |
Technical Data
| Cm | 0,19 mm/N |
|---|---|
| Rated power | 400 W |
| Maximum power | 600 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–5500 Hz |
|---|---|
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 93 dB (2,83 V/1 m) |
| Maximum linear displacement | +/−4 mm |
| Excursion limit | +/−8 mm |
| Resonance frequency fs | 45 Hz |
| Height of front pole-plate | 8 mm |
| Voice coil diameter | 75 mm |
| Height of winding | 16 mm |
| Cutout diameter | 286 mm |
| Net weight | 3,05 kg |
| D.C. resistance Rdc | 6,1 Ohm |
| Mechanical Q factor Qms | 7,63 |
| Electrical Q factor Qes | 0,37 |
| Total Q factor Qts | 0,36 |
| Equivalent volume Vas | 78 l |
| Effective piston area Sd | 539 cm² |
| Dynamically moved mass Mms | 69 g |
| Force factor Bxl | 17,6 Tm |
| Inductance of the voice coil L | 0,55 mH |
