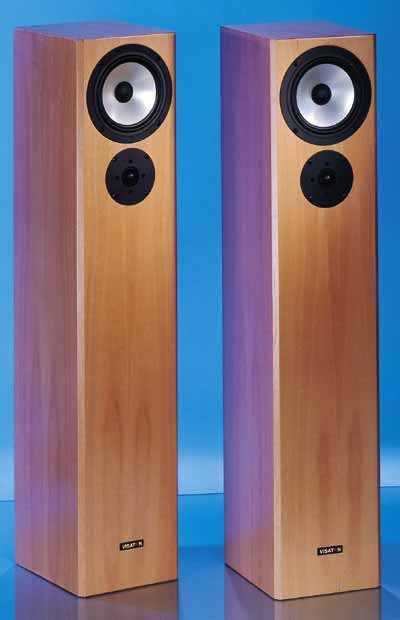

VISATON KAIUTINRAKENNUSSARJA VIB 170 AL (pari)

The VIB 170 AL is a slim-line 2-band column speaker using an AL 170 8 Ohm woofer and a 25 mm, G 25 FFL 8 Ohm textile dome tweeter. The 34 litre bass reflex cabinet produces a remarkably deep lower limiting frequency of only 25 Hz, but maintains its powerful, precise bass reproduction. The reason for this is the subwoofer AL 170 8 Ohm with its rear-vented spider and its long cone strokes. The flow-optimised bass reflex tube BR 25.50 is mounted at the rear of the cabinet to present the most ideal optical appearance, but can, if the cabinets are to be set close to a wall (closer than 10 cm), be moved to the front without any loss in quality.

The two 1 µF capacitors in conjunction with the 2.2 mH coil form a blocking circuit that effectively suppresses the resonance in the aluminium diaphragm generated typically by that material.

The VIB 170 AL is a compact speaker with well-balanced sound quality and clean-cut bass and impulse fidelity, providing excellent dynamic properties for a speaker of this size.

Technical Data:
Rated power	70 W
Maximum power	100 W
Nominal impedance Z	8 Ohm
Frequency response	30 - 30000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Cut-off frequency	2000 Hz
Principle of Housing	Bassreflex
Net volume	34 l
Outer dimension height	1000 mm
Outer dimension width	210 mm
Outer dimension depth	250 mm
