VISATON KAIUTINRAKENNUSSARJA PORTRAIT (pari)






- Tuotekoodi: LS-KITPORTRAIT
- Takuu: 3 vuotta
- Paino: 1.5 kg
- Tilattavissa yli 50 prTuotteet lähetetään 1-2 arkipäivässä niiden saavuttua.
- Toimituskulut alkaen 7,90 €Nouto myymälästä0,00 €

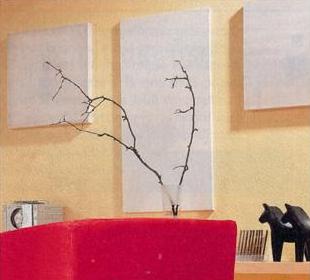

And so we developed the PORTRAIT design, which can be hung on the wall and looks like a picture. The objective was to keep the cabinet as flat as possible. The PORTRAIT will be satisfied with only 40 mm in depth. If you take the time to make some more complex cut-outs, you can even reduce this to 34 mm.
This is made possible by the use of particularly slim 13 cm FR 12 8 Ohm loudspeakers as woofers. Combined with the SC 5 8 Ohm tweeter and the specially designed crossover, this produces a sophisticated satellite speaker unit. Due to the small cabinet, low bass cannot be produced by the PORTRAIT. As a result, the bass range below 100 Hz is best covered by a subwoofer (e.g. SUB-W 20.39 ).
This combination with a powerful subwoofer means that the PORTRAIT set-up is a visually appealing and acoustically highly effective system which can, if required, be extended. If the wall space in front of and behind the listening position are free, additional PORTRAIT speakers can be hung to produce a multi-channel system for home theatre and music.
The point about the PORTRAIT is the option of fitting a fabric front to the cabinet which can vary, depending on the surroundings, e.g. single-coloured or brightly coloured silk. Of course, one can always put one's creative skills to work and make one's own silk covers adorned with favourite motifs. There are no limits to your imagination.
| Extract from "Selbst ist der Mann" The aim of this VISATON development was to produce speakers that were so flat, they could be hung on the wall like pictures. Used on their own, these speakers, fitted with a high-quality 2-band system using a 13-cm low- to mid-range unit and a dome tweeter, sounded a little thin - the bass end was missing, which is completely understandable with cabinets of this size. However, combined with a powerful active subwoofer, whose low frequencies cannot be located by the human ear and can thus be positioned anywhere in the room, they are transformed into a visually unobtrusive but acoustically very potent system, which can be also be combined with other Portraits or other Visaton models to make up a fully-blown surround sound system. |
| Extract from Klang & Ton The Portrait, which is the name of this VISATON speaker, requires a depth of no more than 40 millimetres. In our opinion, that must be a record. |
| Technical Data: | |
|---|---|
| Rated power | 30 W |
| Maximum power | 80 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 80–22000 Hz |
| Mean sound pressure level | 84 dB (1 W/1 m) |
| Cut-off frequency | 7000 Hz |
| Principle of Housing | geschlossen// closed |
| Net volume | 4 l |
| Outer dimension height | 521 mm |
| Outer dimension width | 521 mm |
| Outer dimension depth | 40 mm |
