VISATON KAIUTINRAKENNUSSARJA FONTANELLA SAT (pari)

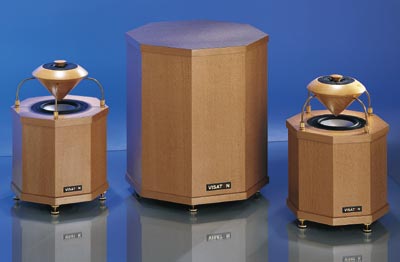

The FONTANELLA subwoofer satellite system is both visually and accoustically a completely new experience. The drivers in the satellites are arranged to project the sound upwards. Two specially shaped cones reflect the sound according to specific patterns to ensure that the sound is distributed horizontally and uniformly in all directions.

The mid-bass unit is the AL 130 M 8 Ohm, and the tweeter range is covered by the DT 94 8 Ohm.

This diffused sound distribution means that the impressive spatial effect is virtually uniform all round the room. Virtual sound sources, for example the voices or instruments that appear between the speakers, can be clearly and precisely located. The depth of colour of the sound remains the same at any seating position in the whole room. Ideally, the satellites should be positioned 0.5 m to 1 m away from a wall and on a base or stand. The cones should then be at ear level or slightly below.

The passive subwoofer cabinet has been designed to match the satellites and is fitted with the GF 200 2 x 4 Ohm double voice-coil woofer; resulting in powerful, highly dynamic bass reproduction from this high-end driver.

The FONTANELLA system provides a high level of listening pleasure as a hifi stereo system but is also extremely well suited to use as the rear effect channel in home-video systems. In such cases, the subwoofer is not required and the two satellites are used alone.

Technical Data:
Rated power	60 W
Maximum power	90 W
Nominal impedance Z	8 Ohm
Frequency response	120 - 20000 Hz
Mean sound pressure level	80 dB (1 W/1 m)
Cut-off frequency	2000 Hz
Principle of Housing	geschlossen / closed
Net volume	6,5 l
Outer dimension height	360 mm
Outer dimension width	239 mm
Outer dimension depth	239 mm
