VISATON K 50 FL 16 OHM

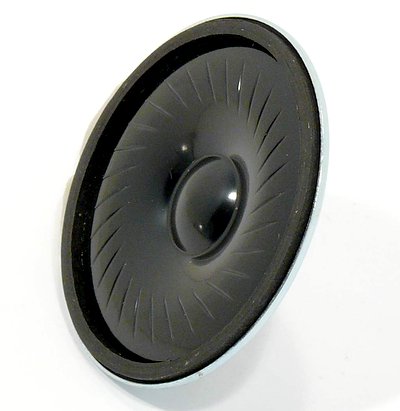

5 cm (2") miniature speaker with plastic diaphragm. Very compact design. Good speech reproduction.

Typical applications:
- Signal output in machines and other equipment where space is at a premium.
- Well suited to outdoor applications and where ambient conditions are generally unfavourable.

*) IP protection class for front side when built into a sealed enclosure

Technical Data:
Rated power	1 W
Maximum power	2 W
Nominal impedance Z	16 Ohm
Frequency response	150–20000 Hz
Mean sound pressure level	80 dB (1 W/1 m)
Resonance frequency fs	340 Hz
Voice coil diameter	13 mm
Height of winding	2 mm
Cutout diameter	46 mm
Net weight	0,014 kg
Protective system	IP 65 *)
Temperature range	−40 ... 70 °C
