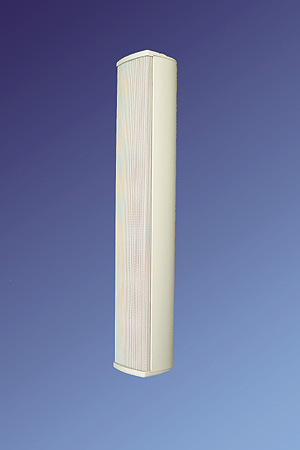

VISATON EZ 40.7 100 V

Extremely slim speaker system using 100 V technology equipped with four 5 cm drivers and one tweeter. Wallmounting is possible using wall brackets on the end faces or universal-joint brackets (optional). Can be swivelled in any direction after fitting. White painted aluminium cabinet and protective grille (RAL 9010).

EZ 40.7 can be supplied painted in other RAL colours on request.

Typical applications:
- As a PA system in conference facilities, public buildings, churches etc.
- Outdoor use

Attributes:
- UV-resistant
- Metal (aluminium)
- 100 V transformer
- 2 way combination
- waterproof

Technical Data:
Transformer matching	20; 10; 5 W
Sound pressure level	94 dB (1 W/1 m) @ 13000 Hz
Frequency response	250–20000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Max. sound pressure level	103 dB (20 W/1 m)
Opening angle (-6 dB)	111°/4000 Hz hor. 33°/4000 Hz vert.
Net weight	1,9 kg
Protective system	IP 54
Temperature range	−25 ... 70 °C
