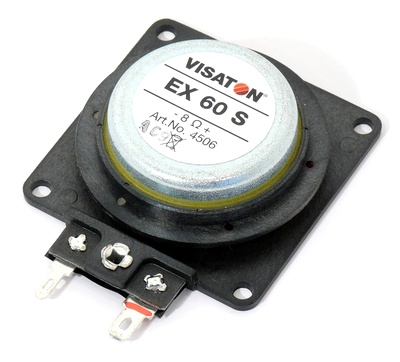

VISATON EX 60 S 8 OHM

Electro dynamical exciter for stimulating bending waves on plates. The unit can be attached to the surface of the plate by gluing or screwing. Typical applications: - Signal output in every application where normal speakers can not be installed for optical reasons or for protection against environment conditions or vandalism.

Please find further information on exciters here:
Basic principles of exciter-technology (PDF; 388 KB)


*) Maximum long term power according to DIN EN 60268-5

Technical Data:
Maximum power	25 W *)
Nominal impedance Z	8 Ohm
Voice coil diameter	32,5 mm
Net weight	0,12 kg
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−25 ... 70 °C
