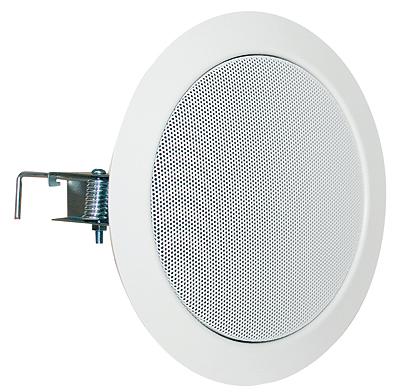

VISATON DL 13/2 100 V

13 cm (5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed. A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment. A quick-mounting bayonet connection provides an easy installation of the grille.

DL 13/2 can be supplied painted in other RAL colours on request.

Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany. The KompaX cabinet series is suitable for our ceiling speakers. Some additional front parts maybe necessary (front rings, mineral fibreboard etc.). More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers). In order to get more detailed information, press the "Technical information" button of the particular product. Fire protection housing systems (F30) are also available (FlamoX).

Typical applications:
- For suspended ceilings in shops, private accomodation, bathrooms etc.

Attributes:
- 100 V transformer
- 2-way system
- Metal basket, non-corrodible

Technical Data:
Transformer matching	6 W; 3 W; 1,5 W
Sound pressure level	98 dB (1 W/1 m) @ 5000 Hz
Frequency response	100–20000 Hz
Mean sound pressure level	89 dB (1 W/1 m)
Max. sound pressure level	96 dB (6 W/1 m)
Opening angle (-6 dB)	52°/4000 Hz
Height of front pole-plate	4 mm
Voice coil diameter	25 mm
Cutout diameter	165 mm
Net weight	1,015 kg
Protective system	IP X3
Colour	RAL 9010
