VISATON DK 8 P 30W/100 V

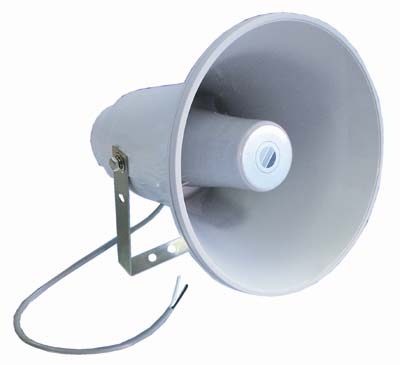

Re-entrant horn speaker with 100 V transformer. Light grey plastic housing. Level adjustment for 100 V model via knob, in addition 100 Ohm possible. High sound pressure and wide range of frequency response guarantee excellent voice quality. Pivoting metal frame for mounting walls, ceilings, columns etc.


Typical applications:
- PA systems in factory halls, railway stations etc.
- outdoor PA

Attributes:
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- Plastic: ABS (UL 94: HB)
- Metall frame: Stainless steel (1.4301)

Technical Data:
Transformer matching	30; 20; 10; 5; 2,5 W / 100 Ohm
Sound pressure level	110 dB (1 W/1 m) @ 2644 Hz
Frequency response	500–5500 Hz
Mean sound pressure level	107 dB (1 W/1 m)
Max. sound pressure level	122 dB (30 W/1 m)
Opening angle (-6 dB)	37°/4000 Hz
Net weight	1,8 kg
Length of cable	0,6 m
Protective system	IP 66
Temperature range	−40 ... 80 °C
Colour	hellgrau/light grey ähnlich/similar RAL 7035
