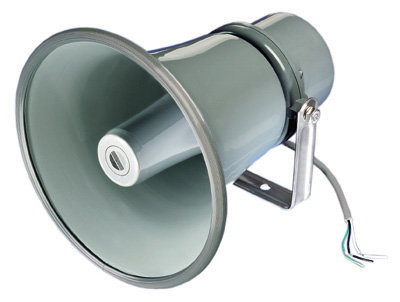

VISATON DK 8 D 100V+20 OHM
TORVIKAIUTIN
100,73 €(Sis.alv)
80,26 €(alv 0%)
- Tuotekoodi: DK8D-100V
- Takuu: 3 vuotta
kpl
Re-entrant horn speaker with 100 V transformer and integrated capacitor for line monitoring by impedance measurement. Five-stage level adjustment for 100 V model via knob, in addition 20 Ohm possible. High sound pressure and wide range of frequency response guarantee excellent voice quality. Pivoting metal frame for mounting walls, ceilings, columns etc.
Typical applications
- PA systems in factory halls, railway stations etc.
- Outdoor PA
Attributes
- Functionally at low temperature according to EN 60068-2-1 ( -25 °C; 96 h)
- Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
- 100 V transformer
- UV-resistant
- Integrated capacitor for line monitoring by impedance measurement
Technical Data
| Transformer matching | 15; 10; 5; 3; 1 W; 20 Ohm |
|---|---|
| Sound pressure level | 107 dB (1 W/1 m) @ 1144 Hz |
| Frequency response | 400–5000 Hz |
| Mean sound pressure level | 105 dB (1 W/1 m) |
| Max. sound pressure level | 117 dB (15 W/1 m) |
|---|---|
| Opening angle (-6 dB) | 42°/4000 Hz |
| Net weight | 1,4 kg |
| Length of cable | 0,6 m |
| Protective system | IP 66 |
| Temperature range | −25 ... 70 °C |
| Colour | RAL 7012 |
