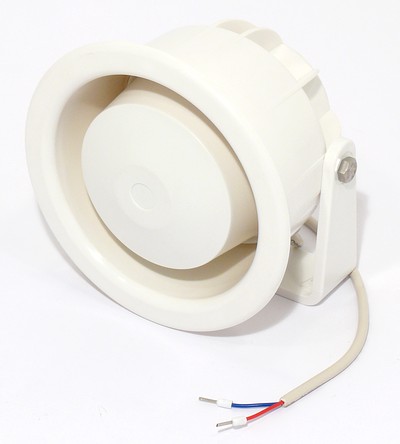

VISATON DK 133 (RAL 9010) 100 V

Horn Speaker with waterproofed design and 100 V transformer. High IP protection class, high sound pressure level, good voice reproduction, compact dimensions.

Typical applications:
- Public address in factories, railway stations etc.
- Outdoor PA for vehicles
- Use in alarm/alert systems

Attributes:
- UV-resistant
- Very high efficiency
- 100 V transformer

Technical Data:
Transformer matching	6/3/1,5/1/0,6/0,4 W
Sound pressure level	106 dB (1 W/1 m) @ 2800 Hz
Frequency response	570–4400 Hz
Mean sound pressure level	100 dB (1 W/1 m)
Max. sound pressure level	107 dB (6 W/1 m)
Opening angle (-6 dB)	63°/4000 Hz
Voice coil diameter	38 mm
Net weight	0,83 kg
Connections	Aderendhülsen/ ferrules
Length of cable	0,5 m
Protective system	IP 67
Temperature range	−25 ... 70 °C
Colour	RAL 9010
