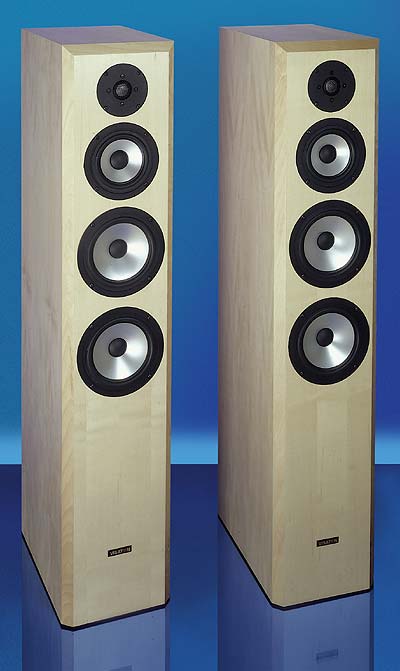

VISATON ATLANTIS MKII KAIUTINRAKENNUSSARJA (pari)

The ATLANTIS has been consistently designed for optimum sound-pressure rating while retaining a moderately sized cabinet and an elegant appearance. In the bass range, two AL 170 8 OHM are mounted in parallel but in separate housings, where each has about 27 l of air space to itself. These speakers have a lower limiting frequency of 28 Hz meaning that they generate good, solid deep bass. Where you position the speakers is more or less a matter of choice, but they should not be right against the wall (a minimum of 10 cm is needed) as otherwise the effect of the bass reflex tubes will suffer.

Compared with the 'normal' AL 130 8 OHM, the AL 130 M 8 OHM is equipped with a shorter voice coil. This improves efficiency and makes it the ideal choice in this combination.

Used as a tweeter, the KE 25 SC 8 Ohm is activated from 2500 Hz. The distortion factor of this ceramic dome driver is really low at these frequencies, so that even high volume levels come across completely free of distortion

Extract from Hobby HiFi 06/00 "In the listening test, the ATLANTIS impressed us with its subtle self-control. This does not mean that the ATLANTIS has anything to hide, though. Finer details are reproduced with such self-assuredness that they do not leap out at one but blend in well with the music. Bass lines with clearly defined plasticity? No problem! Tangible voices straight from the diaphragm? Of course. Precision-made width and range layering? No sooner said than done. VISATON's speaker of the year, fitted with the company's top-of-the-range fit-it-yourself driver, absolutely simple to set up and designed to harmonise with any surroundings. Excellent sound properties in a self-effacing, laid-back shape, to guarantee years of listening pleasure."

Extract from STEREO 09/06 And then came the ATLANTIS, (...) originally a column speaker, with the qualities needed for a higher profile.(...). The seamless interaction of these world-class drivers (...) is an unmistakable characteristic. The KE 25 SC ceramic dome driver is breathtakingly dynamic without the slightest hint of aggression, its aluminium diaphragm produces clearly defined sound coupled with sophistication and beautifully clear bass, voices come across as entirely natural as does the spatial ratio between the stage and the individuals.(...). The ATLANTIS covers the entire frequency response range in a totally frank and unobtrusive manner, which means that poor recordings will not come across as high-quality ones. (...) The reproduction of good music should be confirmation enough that you have bought the right speakers. With the ATLANTIS, you will have no reason to regret your decision.

Technical Data:
Rated power	140 W
Maximum power	200 W
Nominal impedance Z	4 Ohm
Frequency response	28–25000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Cut-off frequency	200/2500 Hz
Principle of Housing	Bassreflex
Net volume	2 x 27 l + 7 l
Outer dimension height	1150 mm
Outer dimension width	230 mm
Outer dimension depth	370 mm
