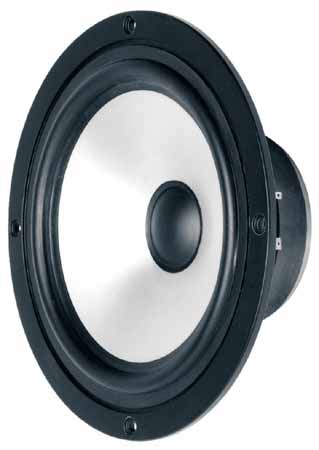

VISATON AL 170 8 OHM

17 cm (6.5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil.
Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.

Technical Data:
Rated power	70 W
Maximum power	100 W
Nominal impedance Z	8 Ohm
Frequency response	fu–10000 Hz
(fu: Lower cut-off frequency depending on cabinet)	.
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	51°/4000 Hz
Excursion limit	+/−11 mm
Resonance frequency fs	38 Hz
Magnetic induction	1,1 T
Magnetic flux	520 µWb
Height of front pole-plate	6 mm
Voice coil diameter	25 mm
Height of winding	18 mm
Cutout diameter	150 mm
Net weight	1,2 kg
D.C. resistance Rdc	5,6 Ohm
Mechanical Q factor Qms	3,88
Electrical Q factor Qes	0,43
Total Q factor Qts	0,39
Equivalent volume Vas	34 l
Effective piston area Sd	133 cm²
Dynamically moved mass Mms	13 g
Force factor Bxl	6,9 T m
Inductance of the voice coil L	0,9 mH
