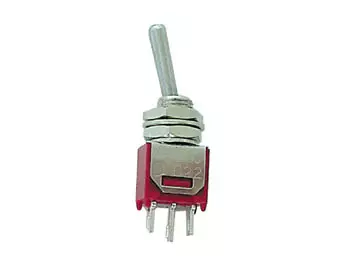

TS-4 SUBMINIATYYRI VIPUKYTKIN (EI THD) 1-NAP ON-ON PIIRIKORTILLE

Ominaisuudet:

Tekniset tiedot:
switching position: •• 2-3: ON •• OPEN: NONE •• 2-1: ON • remark: pcb type / no thread • contact rating: 3A with resistive load of 120Vac or 28Vdc • contact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts • dielectric strength: 1000Vrms at sea level • insulation resistance: min. 1000Mohm • electrical life: 60000 make-and-break cycles at full load • operating temperature range: -30°C to +85°C • materials: •• case: diallyl phthalate (DAP) •• toggle handle: brass, chrome-plated •• bushing: brass, nickel-plated •• housing: stainless steel •• terminal/switch support: brass, electrolytic-plated •• contacts: coin silver, silver-plated •• centre contact and terminal: brass, silver-plated
