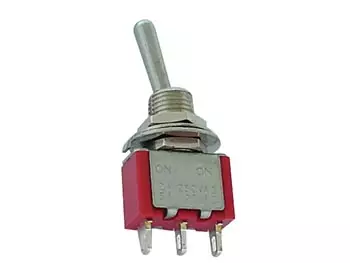

T8013A VIPUKYTKIN 1-NAP ON-(ON)

Ominaisuudet

Tekniset tiedot

• switching position:
    •• 2-3: ON
    •• OPEN: NONE
    •• 2-1: (ON)
• remark: -
• contact rating: 5A with resistive load of 120Vac or 28Vdc
• electrical life: 50000 make-and-break cycles at full load
• contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts
• insulation resistance: min. 1000Mohm
• dielectric strength: 1000Vrms at sea level
• operating temperature: -30°C to +85°C
• materials:
    •• case: melamine or diallyl phthalate (DAP)
    •• toggle handle: brass, chrome-plated
    •• bushing: brass, nickel-plated
    •• housing: stainless steel
    •• end contact: coin silver, silver-plated
    •• end terminal: brass, silver-plated
    •• centre contact and terminal: brass, silver-plated
