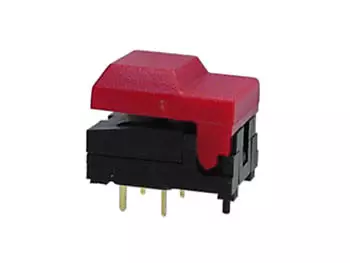

SP86-A1-1-0 DIGITAST PUNAINEN ILMAN LEDIÄ

Ominaisuudet:

Tekniset tiedot:
description: digitast red cap - no LED • rating: 5mA - 24Vdc (minimum 1µA current is acceptable) • initial contact resistance: 20mohm max. (AC 200µV, 5mA) • dielectric strength: 250Vac 1 minute (except between terminals of LED) • insulation resistance: 100Mohm (250Vdc megger) • electrical life: 200000 operations (at rated voltage and current) • static capacity: 1.5pF max. (1MHz) • shock resistance: 30G (3 directions perpendicular to each other, 3 times per direction) • operating temperature range: -25°C to +75°C
