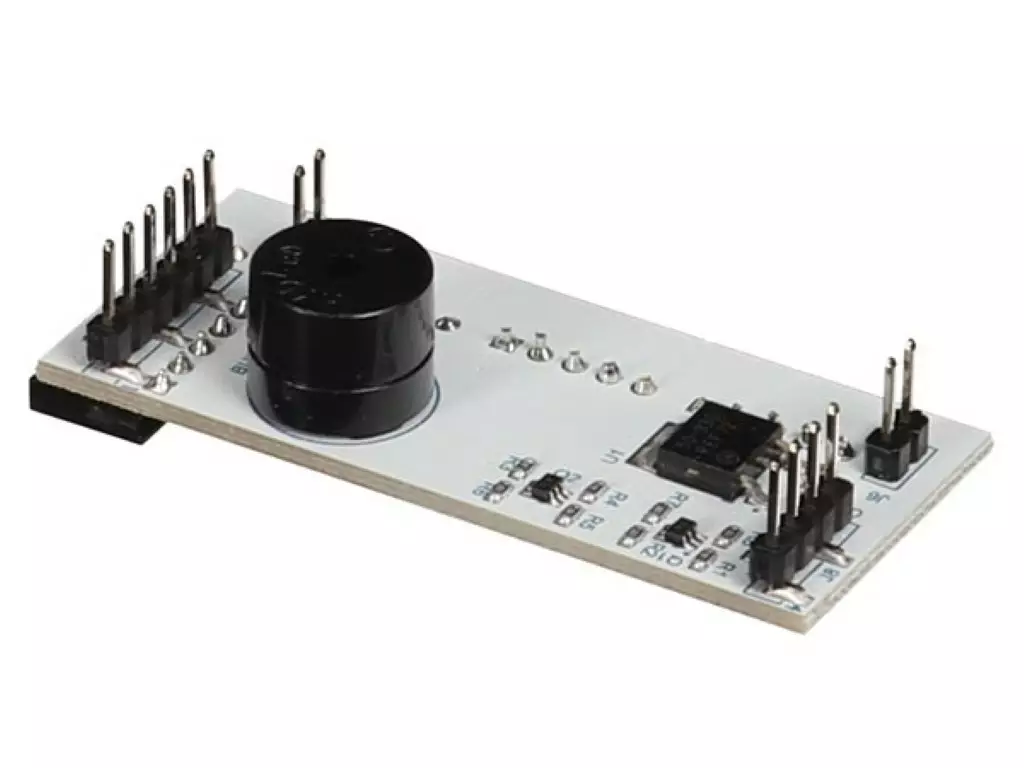

SENSOR SHIELD FOR ARDUINO® ATMEGA

This I2C 3V3 sensor shield for Arduino Mega works perfectly together with the [product name=WPSH412][/product] and it enables you to add up to 8 sensors with easily accessible connectors.

Picture this; you just added a [product name=WPSH412][/product] to your Arduino Mega and you want to add sensors to the I2C bus. However, the 3V3 connection is stuck underneath the TFT shield and you need logic converters to add a 3V3 sensor to a 5V I2C bus. Look no further, this sensor shield will help you out!

Ominaisuudet

4 x 3V3 outputs

1 x 5V output

built-in logic converter (3V3 sensor to 5V I2C bus)

add up to 3 I2C sensors via dedicated ports

2 x interrupt pins (I18 & I19, also connected through logic convertor)

easy access to five analog sensors: A11, A12, A13, A14, A15

built-in buzzer (pin A10)

fits perfectly together with the [product name=WPSH412][/product]

Tekniset tiedot

supply voltage: 5V

length: 57 mm

width: 26.2 mm

height: 13.4 mm

weight: 9.55 g
