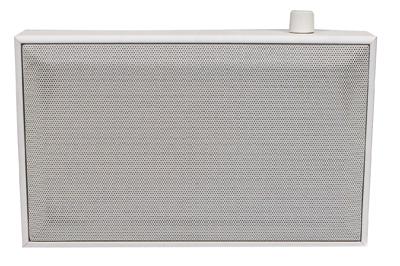

SEINÄKAIUTIN VISATON WL 13 NR 100 V

Wall-mounted speaker with a volume control-knob, wooden cabinet and metal grille. Fitted with a high quality full range driver. Removable rear panel for easy fitting to the wall using two screws. Good music reproduction and clear speech reproduction properties. Connection to 100 V network and level trimming by means of spring terminal.

Also available:
- WL 13 N 100 V (without volume cotrol)
- WL 13 NR P 100 V (with volume control and priority relais)

Typical applications:
- Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds.

Attributes:
- 100 V transformer
- Wooden cabinet with rear panel
- level control

Technical Data:
Transformer matching	6; 3; 1,5 W
Sound pressure level	96 dB (1 W/1 m) @ 4954 Hz
Frequency response	90–20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Max. sound pressure level	96 dB (1 W/1 m)
Opening angle (-6 dB)	79°/4000 Hz hor. 61°/4000 Hz vert.
Net weight	1,4 kg
Temperature range	−25 ... 70 °C
Colour	RAL 9010
