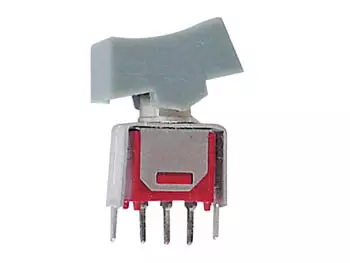

RS-4 SUBMINIATYYRI KEINUKYTKIN 1-NAP ON-ON PIIRIKORTILLE

Ominaisuudet:

Tekniset tiedot:
switching position: •• 2-3: ON •• OPEN: NONE •• 2-1: ON • contact rating: 3A with resistive load of 120Vac or 28Vdc • electrical life: 30000 make-and-break cycles at full load • contact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts • insulation resistance: min. 1000Mohm • dielectric strength: 1000Vrms at sea level • operating temperature: -30°C to +85°C • materials: •• case: diallyl phthalate (DAP) •• rockers: nylon •• bushing: brass, nickel-plated •• housing: stainless steel •• terminal/switch support: brass, electrotin-plated •• contacts: coin silver, silver-plated •• centre contacts and terminals: brass, silver-plated
