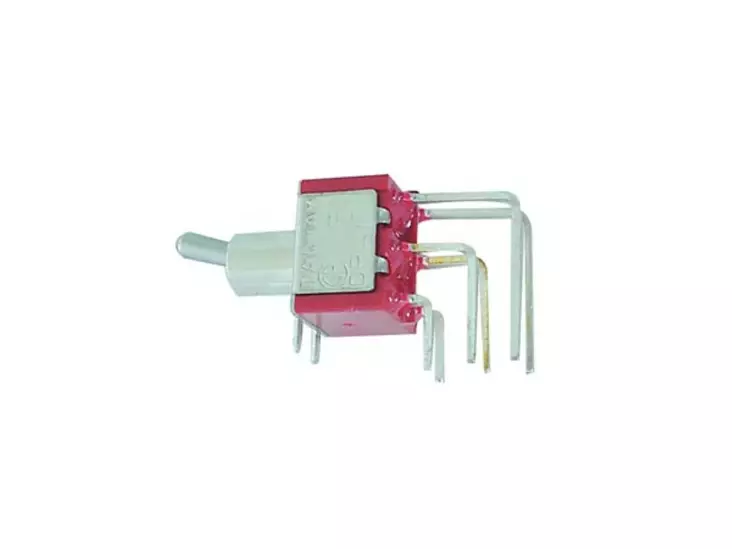

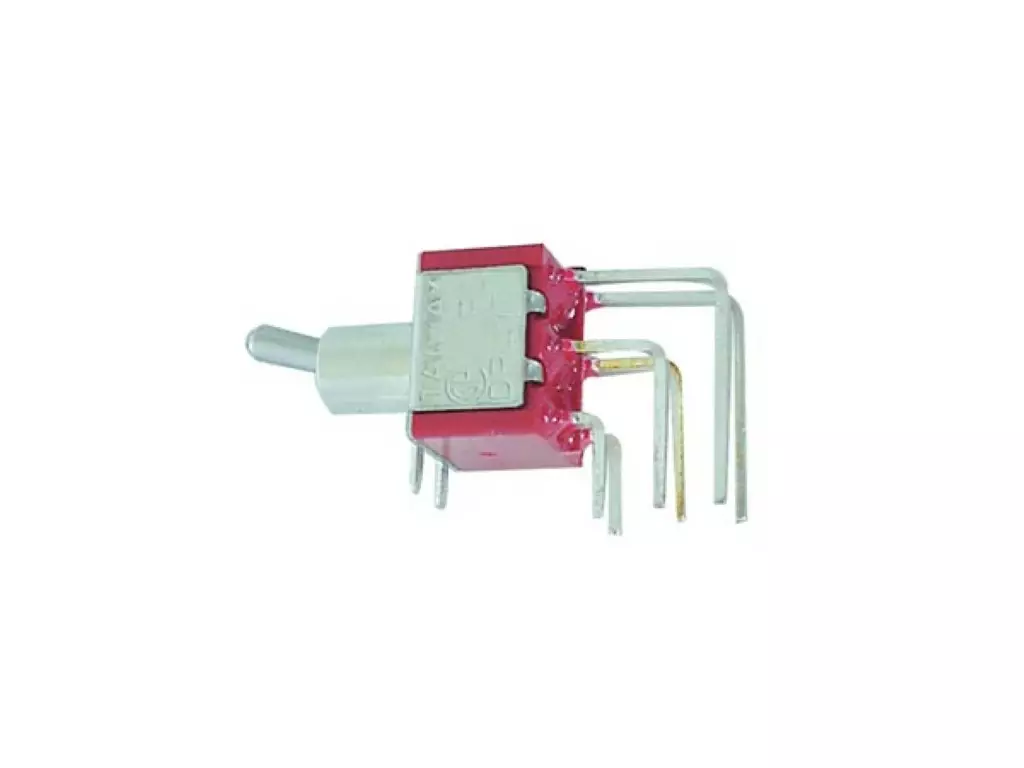

PT8021L VIPUKYTKIN 2-NAP ON-ON

Ominaisuudet:

Tekniset tiedot:
switching position: •• 2-3, 5-6: ON •• OPEN: NONE •• 2-1, 5-4: ON • remark: - • contact rating: 5A with resistive load of 120Vac or 28Vdc • electrical life: 50000 make-and-break cycles at full load • contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts • insulation resistance: min. 1000Mohm • dielectric strength: 1000Vrms at sea level • operating temperature: -30°C to +85°C • materials: •• case: melamine or diallyl phthalate (DAP) •• toggle handle: brass, chrome-plated •• bushing: brass, nickel-plated •• housing: stainless steel •• end contact: coin silver, silver-plated •• end terminal: brass, silver-plated •• centre contact and terminal: brass, silver-plated
