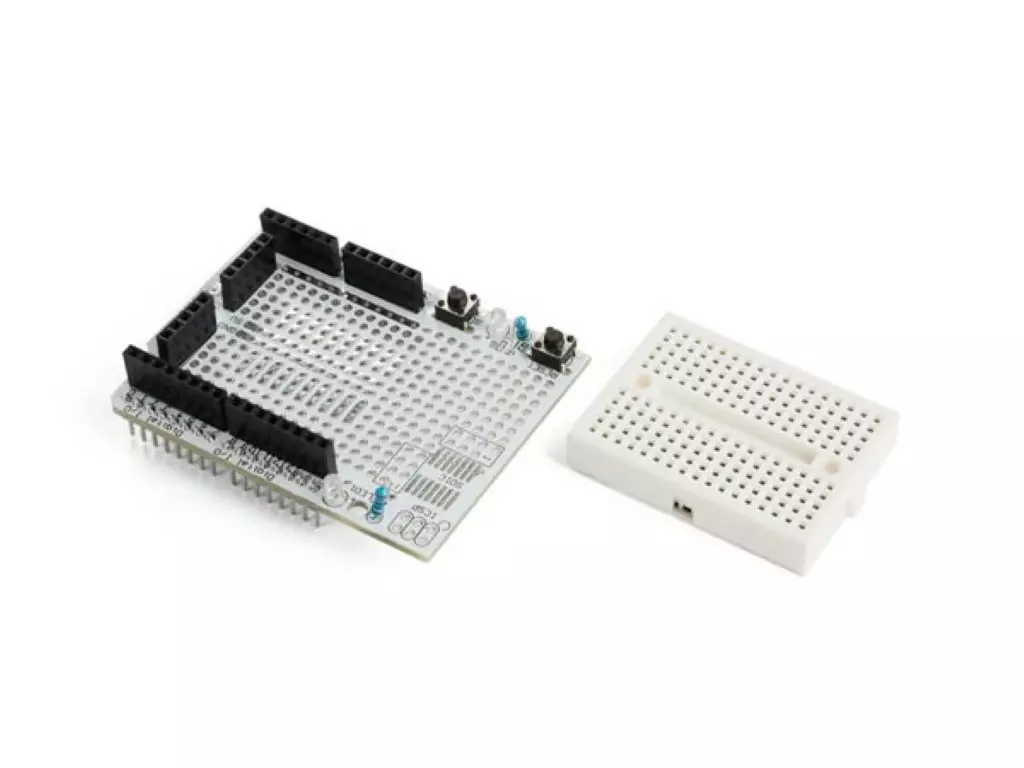

PROTOSHIELD PROTOTYPING BOARD WITH MINI BREADBOARD FOR ARDUINO® UNO

The ProtoShield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with the small solderless breadboard to quickly test circuit ideas without having to solder. It has extra connections for all of the Arduino® I/O pins, and provides space to mount through-hole and surface mount.

Ominaisuudet

1.0 Arduino Pinout

reset button

free to use button + LED circuit

ICSP connector location

14 pin SMD footprint

20 pin through-hole footprint

170 holes self-adhesive breadboard included

compatible with: Leonardo, Uno, Mega, Classic
