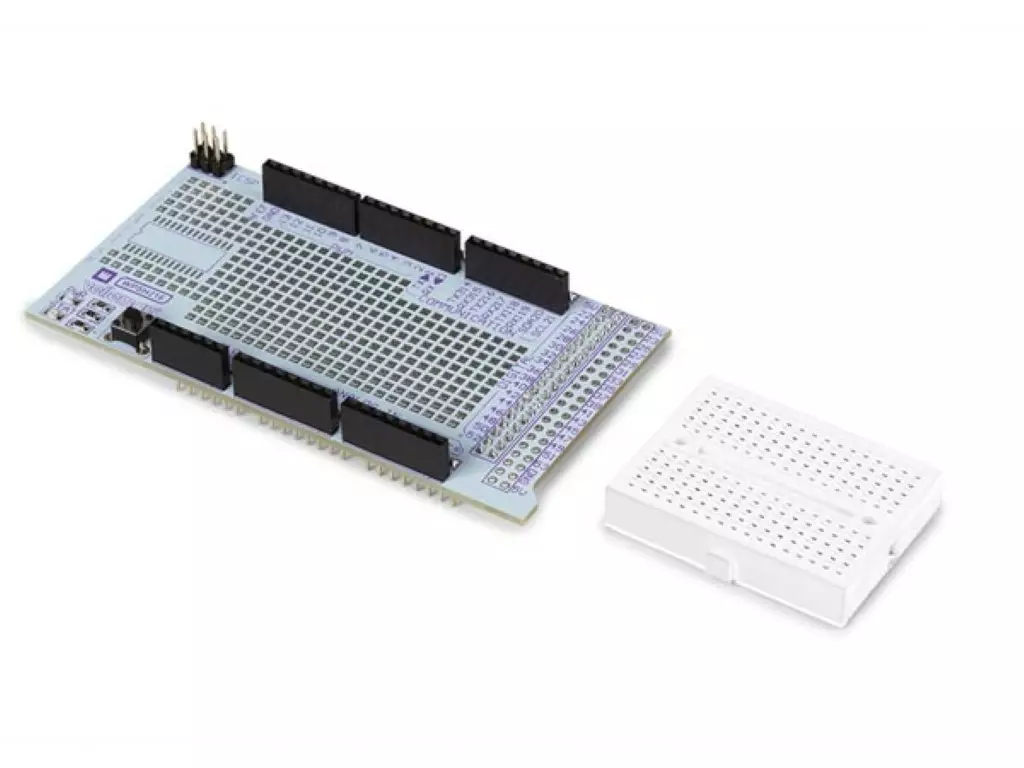

PROTOSHIELD PROTOTYPING BOARD WITH MINI BREADBOARD FOR ARDUINO® MEGA

This prototyping board makes it easy for you to design custom circuits and solder electronics directly onto it!

The board is conveniently designed with a spacious prototyping area for both connected and non-connected through-hole components. There is even a soldering position reserved for an SMD chip! You can easily solder SMD ICs on the prototyping area to test them with your Arduino microcontroller. The board also extends out a row of power and ground through-holes, giving enough port resources. Also included is a 170-holes breadboard that you can stick onto the prototyping area.

Ominaisuudet

compatible with the MEGA 2560 control board and Arduino compatible

extends 5 V, 3 V and Arduino Vin pins

on-board reset button

on-board power LED and D13 status LED

extends ICSP interface

extends all control pins and power pins of Arduino

easy prototyping

tiny 170-hole breadboard included

28-pin IC interface possible

Tekniset tiedot

dimensions: 106 x 56 x 19 mm

weight: 27,2 g (only MEGA protoshield)
