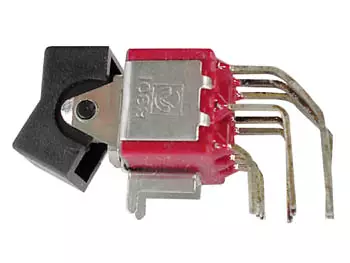

PR8305R KEINUKYTKIN 3-NAP ON-OFF-ON

Ominaisuudet:

Tekniset tiedot:
switching position: •• 2-3, 5-6, 8-9: ON •• OPEN: OFF •• 2-1, 5-4, 8-7: ON • electrical life: 50000 make-and-break cycles at full load • contact rating: 5A with resistive load of 120Vac or 28Vdc • contact resistance: initially max. 10mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts • insulation resistance: min. 1000Mohm • dielectric strength: 1000Vrms at sea level • operating temperature: -30°C to +85°C • materials: •• case: diallyl phthalate (DAP) •• rockers: nylon •• bushing: brass, nickel-plated •• housing: stainless steel •• terminal/switch support: brass, electrotin-plated •• contact: coin silver, silver-plated •• centre contact and terminal: brass, silver-plated
