PIENOISKAIUTIN VISATON K 36 WP 50 OHM

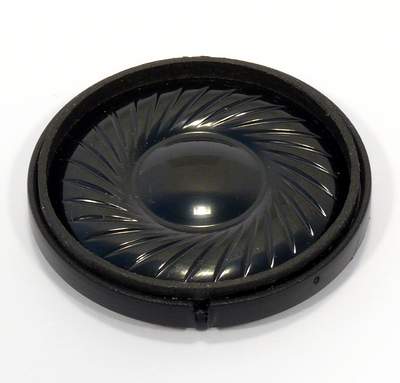

3.6 cm (1.4") miniature speaker with a plastic basket and plastic diaphragm.  Ballanced frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems

Attributes:
- Plastic: ABS (basket; UL 94: HB); Mylar (diapraghm)
- Functionally at cold according to EN 60068-2-1/EN 50155

*) IP protection class for front side when built into a sealed enclosure

Technical Data:
Rated power	1 W
Maximum power	2 W
Nominal impedance Z	50 Ohm
Frequency response	300–20000 Hz
Mean sound pressure level	77 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/−0,5 mm
Resonance frequency fs	550 Hz
Height of front pole-plate	2 mm
Voice coil diameter	10 mm
Height of winding	2 mm
Cutout diameter	31 mm
Net weight	0,006 kg
Protective system	IP 65 *)
Temperature range	−40 ... 70 °C
