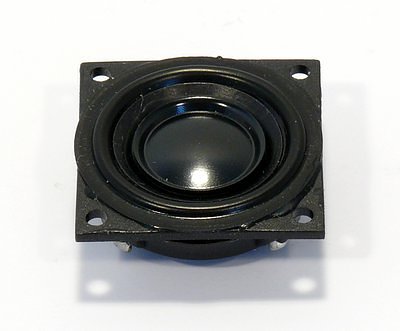

PIENOISKAIUTIN VISATON K 23 SQ 8 OHM

2.3 cm (0.9") miniature speaker with plastic diaphragm and square plastic basket with 4 mounting holes.

Typical applications:
- Voice and signal output in machines and other equipment both indoors and outdoors
- Model construction

Attributes:
- Plastic basket

Technical Data:
Rated power	0,5 W
Maximum power	1 W
Nominal impedance Z	8 Ohm
Frequency response	300–19000 Hz
Mean sound pressure level	74 dB (1 W/1 m)
Resonance frequency fs	530 Hz
Voice coil diameter	12 mm
Height of winding	1,5 mm
Cutout diameter	22,5 mm
Net weight	0,005 kg
