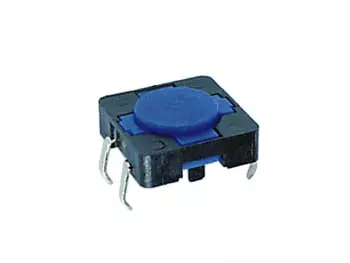

PAINIKE 12x12mm

Ominaisuudet

applications:
    •• for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ...
    •• micro-miniature, lightweight
• snap-in type: suitable for direct PCB mounting

Tekniset tiedot

dimensions: 12 x 12mm
• height: 4.3mm
• rating: 12Vdc - 50mA
• insulation resistance: > 100Mohm - 250Vdc
• withstand voltage: 100Vac 1 minute
• contact resistance: < 100mohm
• soldering temperature: 255°C for max. 5 seconds
• mechanical life: 500000 cycles
• electrical life: 300000 cycles
• ambient temperature range: -25°C to +70°C
• ambient humidity range: < 85% RH
• operating force: 130 to 160 ± 30gf
