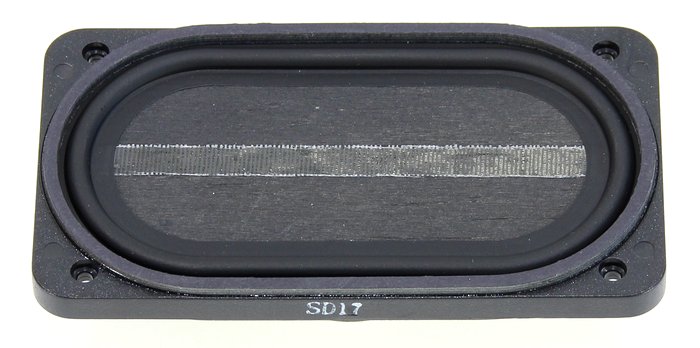

OVAALI LAAJAKAISTAELEMENTTI 5X9cm
- Tuotekoodi: SC5.9FLX-8ohm
- Takuu: 3 vuotta
- Paino: 0.25 kg
5 x 9 cm (2" x 3.5") full-range speaker with wooden cone and stable plastic basket.
Flat and lightweight design because of neodymium. The cooperation of the seperate
components leads to a very linear frequency response up to deepest frequencies by
way of comparison, so that the loudspeaker can be also used in miniature hi-fi speakers
Rated power 4 W
Maximum power 5 W
Nominal impedance Z 8 Ohm
Frequency response 85-20000 Hz
Mean sound pressure level 82 dB (1 W/1 m)
Resonance frequency fs 141 Hz
Magnetic induction 1,15 T
Magnetic flux 184 µWb
Height of front pole-plate 2 mm
Voice coil diameter 25,5 mm
Height of winding 1,8 mm
Net weight 60 g
D.C. resistance Rdc 7,1 Ohm
Mechanical Q factor Qms 3,16
Electrical Q factor Qes 2,55
Total Q factor Qts 1,41
Equivalent volume Vas 0,42 l
Effective piston area Sd 26,8 cm²
Dynamically moved mass Mms 3,0 g
Protective system IP 63 *)
