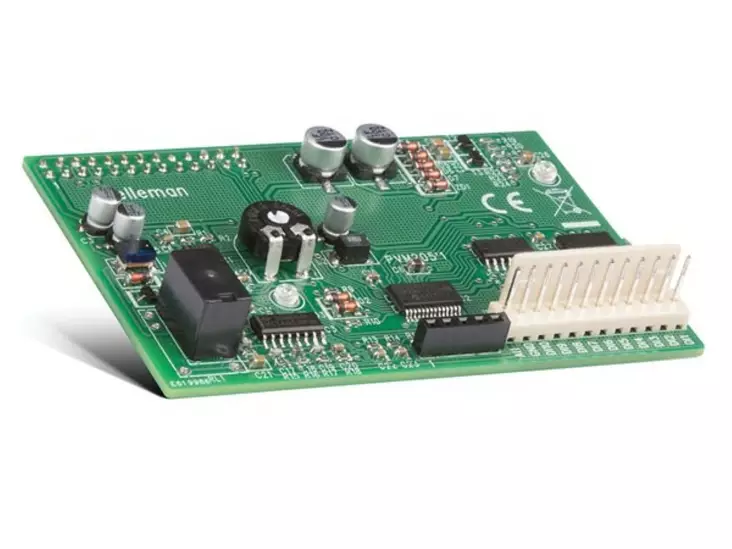

OSCILLOSCOPE AND LOGIC ANALYZER SHIELD FOR RASPBERRY PI®

Do you have a Raspberry Pi? Add this shield and you will also own a digital storage oscilloscope!
This shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.

Tekniset tiedot

oscilloscope:

maximum sample rate : 1MS/s

input amplifier bandwidth : 200kHz (-3dB)

measurements can be performed up to: 100kHz

input impedance : 100kohm // 20pF

maximum input voltage: 30Vp (AC + DC)

input coupling: AC+DC

AD resolution: 8 bit

record length: 800 samples

run modes: Run, Single

trigger level adjustable: in 254 steps

timebase range: in 15 steps 5µs to 200ms/division

input sensitivity range : in 6 steps, 100mV/division to 5V/division

input sensitivity: 3mV display resolution

time and Voltage markers readout

frequency readout (through markers)

logic analyzer:

Number of channels: 10

record length: 10x800 samples

maximum sample rate: 1MS/s

max. input voltage: 5VDC
