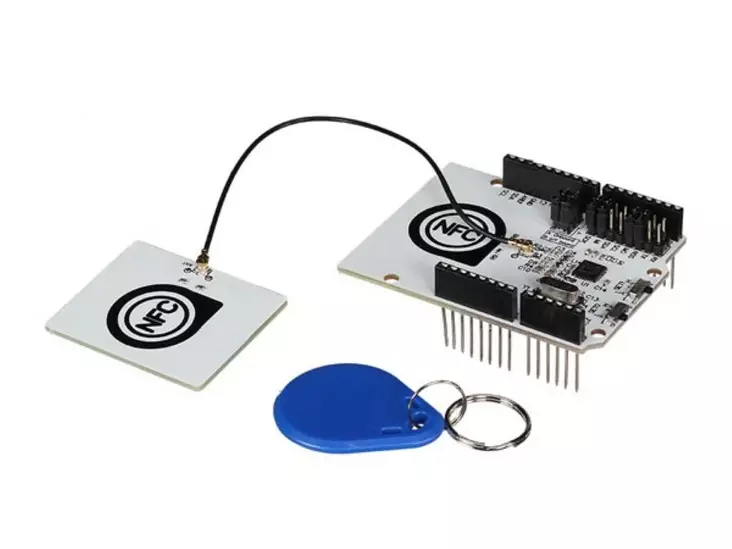

NFC / RFID SHIELD FOR ARDUINO®

This NFC/RFID controller shield is based on the PN532 chip and can be used for field communication close to 13.56 MHz. This shield comes with an onboard antenna. It is compatible with SPI, IIC, UART interface to communicate and needs to be stacked directly onto the VMA100 UNO control board.

Tekniset tiedot

chip: NXP PN532

working voltage: 3.3 V

power voltage: 3.3 - 5.5 V

max. power current: 150 mA

working current (standby mode): 100 mA

working current (write mode): 120 mA

working current (read mode): 120 mA

communication distance: 2.5 cm

communication interfaces: SPI, I2C, UART

compatibility: ISO14443 type A and B cards / tags at 13.56 Mhz

dimensions: 69 x 54 x 24 mm

weight: 18 g
