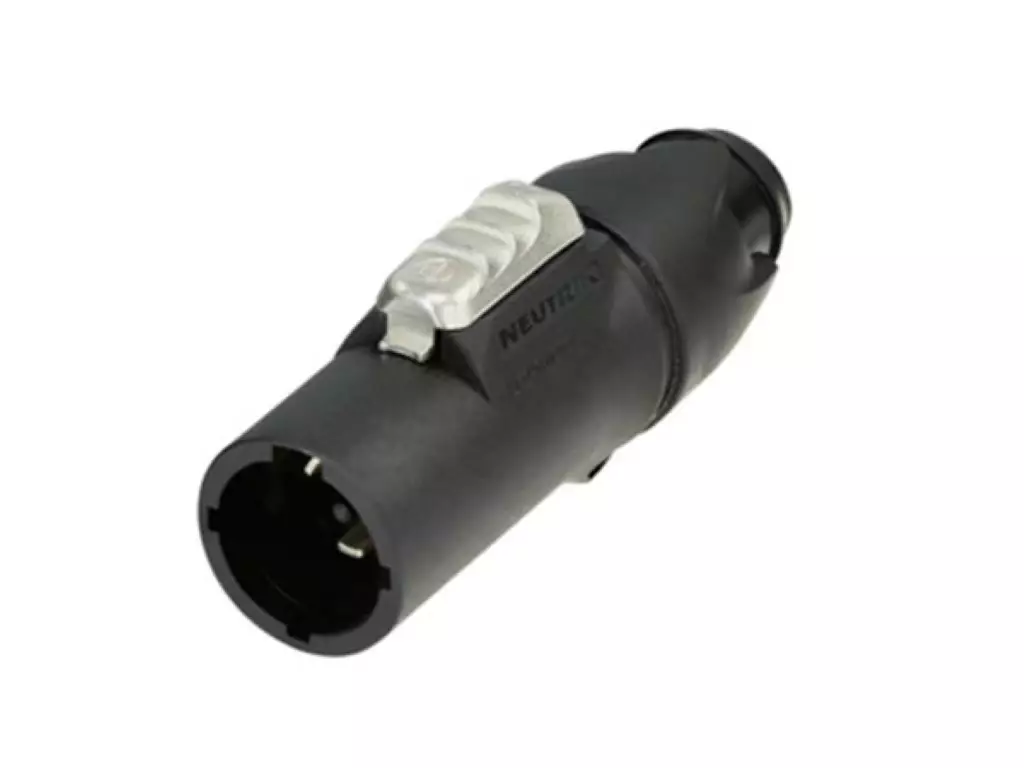

NEUTRIK - POWERCON TRUE1 TOP - 16 A, LOCKING MALE CONNECTOR

The highly innovative entertainment industry is permanently evolving accompanied by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment like PA systems, signs and LED screens or lightings.
Neutrik took up the challenge and developed a new line of True Outdoor Protection (TOP) products for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These rugged sealed connectors feature not only IP protection but also UV resistance approved according to UL50E.
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Ominaisuudet

locking male cable connector, screw terminals

heavy duty sealed power connector for harsh and demanding environment

outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)

uses high impact UV-resistant materials

true mains connector with breaking capacity (CBC)

lockable 16 A single phase connector (USA: 20 A)

easy and reliable twist lock system

extremely robust and reliable

unique Neutrik cable retention

ENEC certified according to IEC 60320

UL498 certified

Tekniset tiedot

electrical:

contact resistance: 3 mO

dielectric strength: 4 kVdc / 2.8 kVac

insulation resistance: > 0.1 GO (after damp heat test IEC 68-2-30)

number of electronic contacts: 2 + PE

rated current per contact: 16 A rms (USA: 20 A)

rated voltage: 250 V ac

mechanical

cable O.D.: 6 - 12 mm

lifetime: > 5000 mating cycles

wire size: 1.0 - 2.5 mm²

wire size: 12 AWG

material

contact plating: 2 µm Ag

contacts: bronze (CuSn0.2)

insert: polyamide (PA 6.6 30 % GR)

locking element: ZuAl4Cu1

shell: polyamide (PA 6.6 30 % GR)

strain relief: polyacetal (POM)

environmental

flammability: UL 94 V-0

protection class: IP65, UL50E enclosure type 4 (mated)

temperature range: -30 °C to +80 °C
