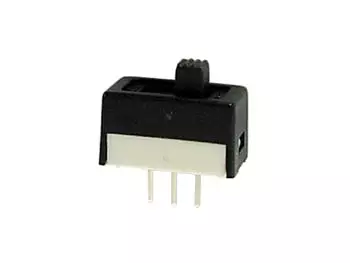

MINIATYYRI LIUKUKYTKIN 1-NAP ON-ON 0,1'' PIIRIKORTILLE

Ominaisuudet

Tekniset tiedot

• pin spacing: 0.1" / 2.54mm
• switching position:
    •• left: on
    •• middle: none
    •• right: on
• contact rating:
    •• 6A with resistive load of 120Vac or 28Vdc
    •• 2A with resistive load of 250Vac
• mechanical life: 2000 operations
• insulation resistance: 1000Mohm under 500V
• dielectric strength:
    •• between contacts: 1000Veff
    •• between contacts and neutral point: 2000Veff 50Hz
• operating temperature: -40°C to +85°C
• breaking capacity: silver contacts 2A / 250V
• minimum load: silver contacts 100mA 10V
• initial contact resistance:
    •• silver: <10mohm
    •• gold: 50mohm
