LAAJENNETTU USB-LIITYNTÄKORTTI

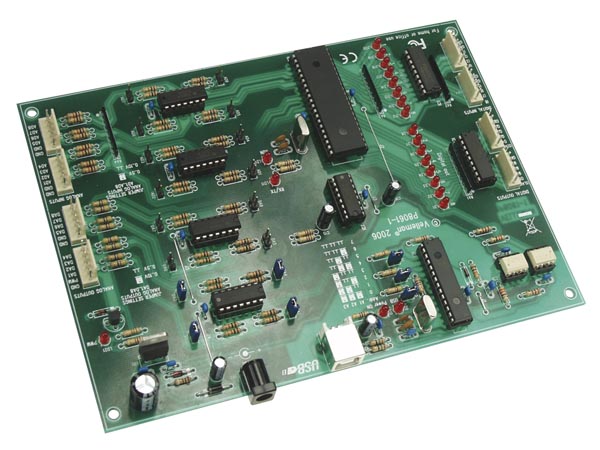

This interface board has a total of 33 input/outputs: including analogue / digital and + 1PWM output. Connection to the computer is galvanically-optically isolated, so that damage to the computer is not possible thus providing a high level of secure implementation. All communication routines are contained in a Dynamic Link Library (DLL). You may write custom Windows*. Applications in Delphi, Visual Basic, C++ Builder or most other 32-bit Windows application development tool that supports calls to a DLL. For first time interfacing and tutoring, check also our K8055 USB experimentation interface board * WinXp recommended for optimum compatibility * Are registered trademarks of MICROSOFT CORP.

Ominaisuudet

• 8 analogue 10 bit resolution inputs: 0…5 or 10VDC / 20kohm
• 8 analogue 8 bit resolution outputs: 0…5V or 10VDC / 47ohm
• 8 digital inputs: open collector compatible (connection to GND=0) with on board LED indication
• 8 digital open collector outputs (max. 50V/100mA) with on board LED indication
• one 10 bit PWM output: 0 to 100% open collector output (max 100mA / 40V) with on board LED indication.
• general response time: 4ms per command
• USB Port: 2.0 and 1.1 compatible (USB cable included)
• also available as completely mounted module VM140

Tekniset tiedot

• power consumption through USB port: approx. 60mA
• up to 8 cards can be connected to PC
• power supply through adaptor: 12Vdc / 300 mA (PS1205)
• PWM Frequency: 15,6 KHz
• standard execution time: 48mS (use Microchip and K8061D.DLL drivers)
• enhanced execution time: 21mS (use K8061_C.DLL)
• PCB Dimensions: 195 x 142 x 20mm / 7.7 x 5.6 x 0.8"
• minimum system:
    •• pentium class CPU with free USB port (1.1 or higher)
    •• windows 98SE or higher (Win NT excluded) *
    •• CD ROM player and Mouse
• (*): Windows XP recommended!
• (*): Are registered trademarks of MICROSOFT CORP.
