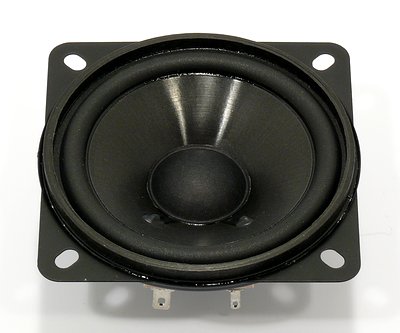

LAAJAKAISTAELEMENTTI VISATON SL 87 ND 8 OHM

8.5 cm (3.4") full-range speaker with plastic cone and rubber surround. Low weight due to neodymium magnet. Very high efficiency and well-balanced frequency response.

Typical applications:
- Column speakers
- Small hi-fi systems

Technical Data:
Rated power	10 W
Maximum power	15 W
Nominal impedance Z	8 Ohm
Frequency response	88−20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	132°/4000 Hz
Resonance frequency fs	120 Hz
Voice coil diameter	20 mm
Cutout diameter	80 mm
Net weight	0,11 kg
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−40 ... 80 °C
