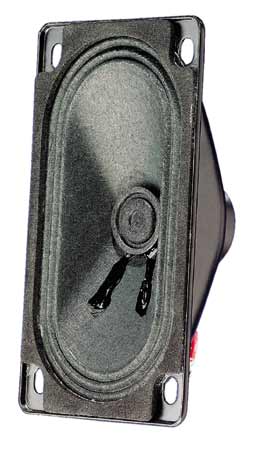

LAAJAKAISTAELEMENTTI VISATON SC 5.9 8 OHM

Magnetically shielded oval fullrange driver with a powerful magnetic drive, good efficiency and a very balanced frequency response. Due to the very good highrange reproduction and the small size any non-spacious application in the field of multimedia and Dolby Surround are possible. The SC 5.9 can furthermore be used as replacement part for internal TV speakers.

Typical applications:
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals
- Control speaker for electronic devices

Attributes:
- Moisturised cone
- Metal basket
- Magnetically shielded

Technical Data:
Rated power	10 W
Maximum power	15 W
Nominal impedance Z	8 Ohm
Frequency response	130–20000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz hor. 131°/4000 Hz ver.
Excursion limit	+/−1,5 mm
Resonance frequency fs	193 Hz
Magnetic induction	0,9 T
Magnetic flux	120 µWb
Height of front pole-plate	3 mm
Voice coil diameter	14 mm
Height of winding	4 mm
Cutout diameter	43 x 82 mm (oval)
Net weight	0,214 kg
D.C. resistance Rdc	7,0 Ohm
Mechanical Q factor Qms	7,52
Electrical Q factor Qes	1,5
Total Q factor Qts	1,25
Equivalent volume Vas	0,4 l
Effective piston area Sd	26,5 cm²
Dynamically moved mass Mms	1,5 g
Force factor Bxl	2,5 Tm
Inductance of the voice coil L	0,4 mH
Temperature range	−25 ... 70 °C
