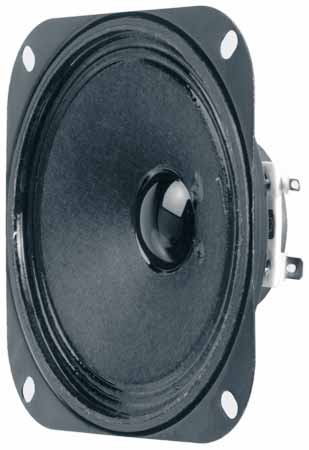

LAAJAKAISTAELEMENTTI VISATON R 10 S 8 OHM

10 cm (4") fullrange speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices.

Equivalent to model R 10 S TE 8 OHM, but with connectors 5.2 x 0.5 mm (+) and 2.8 x 0.5 mm (-).

Typical applications:
- Control speakers for electronic devices
- Ceiling- mounted speakers in railway carriages and busses
- Model construction

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	8 Ohm
Frequency response	100–13000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	92°/4000 Hz
Excursion limit	+/−1,5 mm
Resonance frequency fs	188 Hz
Magnetic induction	0,95 T
Magnetic flux	135 µWb
Height of front pole-plate	3 mm
Voice coil diameter	15 mm
Height of winding	4 mm
Cutout diameter	93 mm
Net weight	0,16 kg
D.C. resistance Rdc	7,2 Ohm
Mechanical Q factor Qms	6,27
Electrical Q factor Qes	2,92
Total Q factor Qts	1,99
Equivalent volume Vas	1,7 l
Effective piston area Sd	56 cm²
Dynamically moved mass Mms	2 g
Force factor Bxl	2,0 T m
Inductance of the voice coil L	0,5 mH
Connections	5,2 x 0,5 mm (+) 2,8 x 0,5 mm (−)
Temperature range	−25 ... 70 °C
