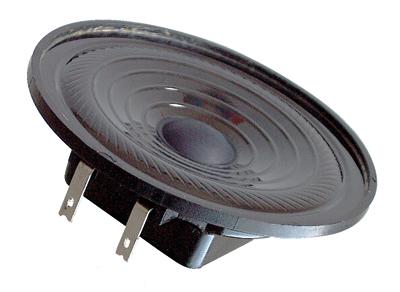

LAAJAKAISTAELEMENTTI VISATON K 64 WP 8 OHM
- Tuotekoodi: K64WP-8OHM
- Takuu: 3 vuotta
- Paino: 62 g
6,4 cm (2.5") full-range speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).
- Version with different orientation of the terminals: see K 64 WPT 8 OHM
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Attributes :
- Weather-resistant
- UV-resistant
- Plastic: ABS (basket; UL 94: HB); Mylar (diaphraghm)
- Functionally at cold according to EN 60068-2-1/EN 50155
- Cold storage (-40 °C) according to EN 60068-2-1/EN 50155
- Functionally at damp heat (cyclic) according to EN 60068-2-3/EN 50155
- Functionally at dry heat according to EN 60068-2-2/EN 50155
*) IP protection class for front side when built into a sealed enclosure
| Technical Data: | |
|---|---|
| Rated power | 2 W |
| Maximum power | 3 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 200–15000 Hz |
| Mean sound pressure level | 86 dB (1 W/1 m) |
| Opening angle (-6 dB) | 109°/4000 Hz |
| Excursion limit | +/−1,5 mm |
| Resonance frequency fs | 300 Hz |
| Magnetic induction | 0,7 T |
| Magnetic flux | 45 µWb |
| Height of front pole-plate | 2 mm |
| Voice coil diameter | 10 mm |
| Height of winding | 2,5 mm |
| Cutout diameter | 60 mm |
| Net weight | 0,05 kg |
| Protective system | IP 65 *) |
| Temperature range | −40 ... 80 °C |
