LAAJAKAISTAELEMENTTI VISATON K 50 WP 16 OHM

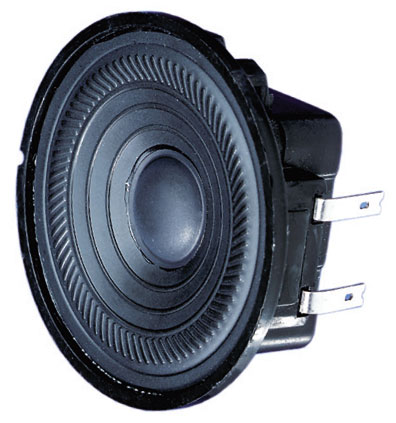

5 cm (2") full-range speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems

Attributes:
- Plastic: ABS (basket; UL 94: HB); Mylar (diaphragm)
- Functionally at cold according to EN 60068-2-1/EN 50155
- Weather-resistant
- UV-resistant

*) IP protection class for front side when built into a sealed enclosure

Technical Data:
Rated power	2 W
Maximum power	3 W
Nominal impedance Z	16 Ohm
Frequency response	180–17000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/−1 mm
Resonance frequency fs	300 Hz
Height of front pole-plate	2 mm
Voice coil diameter	10 mm
Height of winding	2,5 mm
Cutout diameter	46 mm
Net weight	0,048 kg
Protective system	IP 65 *)
Temperature range	−40 ... 80 °C
