LAAJAKAISTAELEMENTTI VISATON FRS 5 XTS 8 OHM

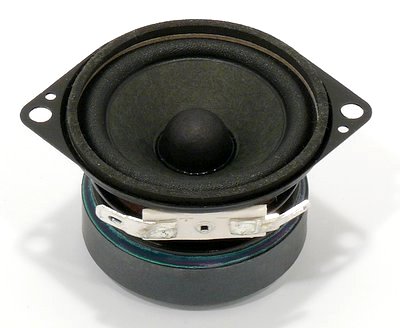

5 cm (2") full-range speaker with black basket and two fixing lugs. Due to its low resonant frequency the frequency response starts already at 120 Hz. Suitable as full-range speaker and medium-range driver in speaker systems for HiFi and background music and for 100 V PA systems. Thanks to the slim construction, also suitable as a control speaker in electronic devices.Equipped with blade terminals 4.8 x 0.8 mm (+) and 2.8 x 0.8 mm (-), bent by 30deg and with a foam gasket.


Typical applications:
- Very narrow network column speakers
- Control speaker for electronic devices
- Model construction
- Electronic musical instruments

Attributes:
- Moisturised cone
- Metal basket

Technical Data:
Rated power	5 W
Maximum power	8 W
Nominal impedance Z	8 Ohm
Frequency response	120–20000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Resonance frequency fs	190 Hz
Voice coil diameter	14 mm
Cutout diameter	46 mm
Net weight	0,14 kg
D.C. resistance Rdc	7,7 Ohm
Mechanical Q factor Qms	3,49
Electrical Q factor Qes	0,88
Total Q factor Qts	0,7
Equivalent volume Vas	0,23 l
Effective piston area Sd	12,5 cm²
Dynamically moved mass Mms	0,7 g
Force factor Bxl	2,67 Tm
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−25 ... 70 °C
