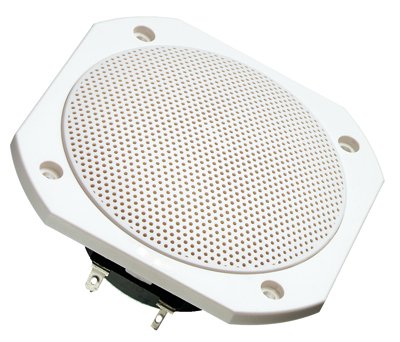

LAAJAKAISTAELEMENTTI VISATON FRS 10 WP white 8 OHM
MERIVEDENKESTÄVÄ 10 CM (4'') LAAJAKAISTAELEMENTTI. SOPII HYVIN KÄYTETTÄVÄKSI SAUNAKAIUTTIMENA 120C LÄMMÖNKESTON VUOKSI.
61,12 €(Sis.alv)
48,70 €(alv 0%)
- Tuotekoodi: FRS10WP-WHITE-8OHM
- Takuu: 3 vuotta
- Paino: 0.45 kg
kpl
Saltwater resistant 10 cm (4") full-range driver with glas fibre cone, plastic basket and grille. Balanced frequency response, high efficiency and good high-midrange reproduction. Long time weather proved and therefore especially suited for out-door sound reinforcement systems, swimming pools, sauna and speaker for boats, ships and open vehicles. Also suitable for model boat applications. 120 C temperature resistant.
Typical applications:
- Outdoor sound reinforcement systems
- Speaker systems for saunas
- Weatherproof network column speakers
- Boats, ships and open vehicles
Attributes:
- suitable for outdoor applications, seawater proof
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- Plastic: PC (UL 94: V-0)
- ball-resistant
*) IP protection class for front side when built into a sealed enclosure
| Technical Data: | |
|---|---|
| Rated power | 25 W |
| Maximum power | 50 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 90–19000 Hz |
| Mean sound pressure level | 90 dB (1 W/1 m) |
| Opening angle (-6 dB) | 64°/4000 Hz |
| Excursion limit | +/−3 mm |
| Resonance frequency fs | 174 Hz |
| Magnetic induction | 1,0 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 5 mm |
| Cutout diameter | 92 mm |
| Net weight | 0,36 kg |
| D.C. resistance Rdc | 6,4 Ohm |
| Mechanical Q factor Qms | 7,6 |
| Electrical Q factor Qes | 1,12 |
| Total Q factor Qts | 0,98 |
| Equivalent volume Vas | 1,9 l |
| Effective piston area Sd | 57 cm² |
| Dynamically moved mass Mms | 3 g |
| Force factor Bxl | 4,3 Tm |
| Inductance of the voice coil L | 0,2 mH |
| Protective system | IP 65 *) |
| Temperature range | −40 ... 120 °C |
| Colour | weiß / whi |
