Visaton
TIIVISTERENGAS VISATON FR 8 WP 88mm
Tuotekoodi: GASKETFR8WP
1,03 €(Sis.alv)
0,82 €(alv 0%)
Tuote loppu toimittajalta

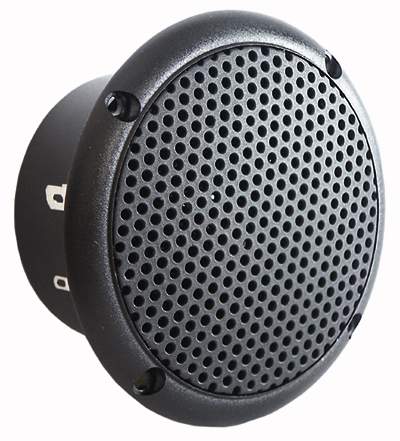

LAAJAKAISTAELEMENTTI VISATON FR 8 WP black 8 OHM
MERIVEDENKESTÄVÄ 8 CM (3.3'') LAAJAKAISTAELEMENTTI
21,90 €(Sis.alv)
17,45 €(alv 0%)
- Tuotekoodi: FR8WP-BLACK-8OHM
- Takuu: 3 vuotta
- Paino: 0.26 kg
kpl
Saltwater resistant 8 cm (3.3") full-range speaker with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Clear-cut high-range output.
Typical applications:
- Outdoor PA systems
- Loudspeaker for solariums and damp locations
- Boats, ships and open vehicles
Attributes:
- seawater proof
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- Plastic: ASA (UL 94:HB; UV-/weather-proof)
- ball-resistant
*) IP protection class for front side when built into a sealed enclosure
Typical applications:
- Outdoor PA systems
- Loudspeaker for solariums and damp locations
- Boats, ships and open vehicles
Attributes:
- seawater proof
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- Plastic: ASA (UL 94:HB; UV-/weather-proof)
- ball-resistant
*) IP protection class for front side when built into a sealed enclosure
| Technical Data: | |
|---|---|
| Rated power | 15 W |
| Maximum power | 25 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 100–20000 Hz |
| Mean sound pressure level | 84 dB (1 W/1 m) |
| Opening angle (-6 dB) | 114°/4000 Hz |
| Excursion limit | +/−3 mm |
| Resonance frequency fs | 158 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4 mm |
| Cutout diameter | 74 mm |
| Net weight | 0,23 kg |
| Connections | 5,2 x 0,5 mm (+) 2,8 x 0,5 mm (−) |
| Protective system | IP 65 *) |
| Temperature range | −40 ... 80 °C |
| Colour | schwarz / black |
